LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

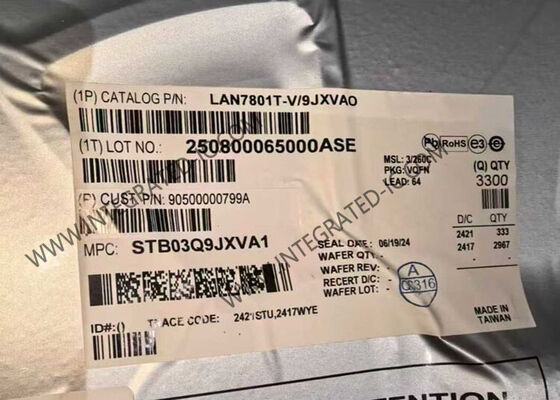

Large Image : LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LAN7801T-V/9JXVAO

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SQFN-64
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

LAN7801T-V/9JXVAO Ethernet IC USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller with RGMII

Description

Part Number:

LAN7801T-V/9JXVAO

Type:

Ethernet IC

Voltage I/O Supply:

1.8V-3.3V

Package:

SQFN-64

Highlight:

USB 3.1 Gen 1 Ethernet IC

10/100/1000 Ethernet Controller

RGMII USB to Ethernet Controller

LAN7801T-V/9JXVAO Ethernet IC SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller With RGMII

The LAN7801T-V/9JXVAO is a high-performance USB 3.1 Gen 1 to 10/100/1000 Ethernet controller with RGMII interface. This cost-effective connectivity solution serves applications ranging from automotive infotainment/ADAS and notebook/tablet docking stations to set-top boxes, USB port replicators, embedded systems, and test instrumentation.

Key Highlights

Single Chip SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller
RGMII output to external Gigabit PHYs
Integrated 10/100/1000 Ethernet MAC with Full-Duplex Support
Integrated USB 3.1 Gen 1 SS Device Controller and PHY
Low Power Consumption with Energy Efficient Ethernet IEEE 802.3az compliance
Wake on LAN (WoL) support
Configuration via One Time Programmable (OTP) Memory
NetDetach for automatic USB attach/detach with Ethernet cable connection
AEC-Q100 qualified for automotive applications

Technical Features

USB 3.1 Gen 1 Device Controller:

Supports SS (5 Gbps), HS (480 Mbps), and FS (12 Mbps) modes
Four endpoints supported
Vendor specific commands support
Remote wakeup capability

10/100/1000 Ethernet Controller:

Compliant with IEEE802.3/802.3u/802.3ab/802.3az standards
10BASE-T/100BASE-TX/1000BASE-T support
Full- and half-duplex capability (full-duplex only at 1000 Mbps)

Controller Modes:

Microsoft AOAC support (Always On Always Connected)
Microsoft NDIS 6.2 large send offload
Full-duplex flow control
Loop-back modes
IEEE 802.1q VLAN tagging support
VLAN tag based packet filtering (all 4096 tags)
Flexible address filtering with 33 exact matches and 512-bit hash filter
Promiscuous unicast/multicast modes
Comprehensive statistical counters
PME pin support

Frame Features:

32 wake-up frame patterns support
Preamble generation and removal
Automatic 32-bit CRC generation and checking
9 KB jumbo frame support
Automatic payload padding and pad removal
Rx/Tx checksum offloads for IPv4, IPv6, TCP, UDP, IGMP, ICMP
IEEE 802.1q VLAN tag add/strip capability

Applications

Automotive Infotainment and ADAS systems
Notebook and Tablet Docking Stations
Detachable Laptops
USB Port Replicators
Standalone USB to Ethernet Dongles
Embedded Systems and Consumer Electronics
Set-Top Boxes and Video Recorders
Test Instrumentation and Industrial Equipment
