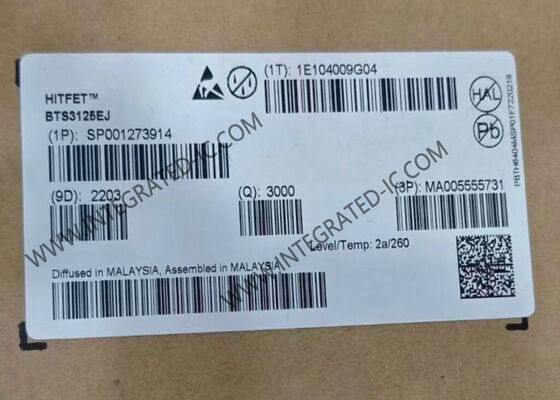

BTS3125EJ Integrated Circuit Chip 10A Output Current Automotive Qualified 125 mΩ On Resistance Power Switch

BTS3125EJ Integrated Circuit Chip 10A Output Current Automotive Qualified 125 mΩ On Resistance Power Switch
BTS3125EJ Integrated Circuit Chip 10A Output Current Automotive Qualified 125 mΩ On Resistance Power Switch BTS3125EJ Integrated Circuit Chip 10A Output Current Automotive Qualified 125 mΩ On Resistance Power Switch

Large Image :  BTS3125EJ Integrated Circuit Chip 10A Output Current Automotive Qualified 125 mΩ On Resistance Power Switch

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BTS3125EJ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-TDSO-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

BTS3125EJ Integrated Circuit Chip 10A Output Current Automotive Qualified 125 mΩ On Resistance Power Switch

Description
Part Number: BTS3125EJ Output Current: 2 A
Current Limit: 7 A On Resistance - Max: 250 MOhms
Operating Supply Voltage: 3 V To 5.5 V Operating Temperature: -40°C ~ 150°C (TJ)
Highlight:

10A Output Current Integrated Circuit Chip

,

Automotive Qualified Power Switch

,

125 mΩ On Resistance BTS3125EJ

BTS3125EJ Integrated Circuit Chip
10A Single Channel Smart Low-Side Power Switch in PG-TDSO-8 Package
Product Overview
The BTS3125EJ is a 125 mΩ single channel Smart Low-Side Power Switch in a PG-TDSO8-31 package with embedded protective functions. This device features an N-channel vertical power MOSFET constructed through monolithic integration. Automotive qualified and optimized for 12V automotive applications.
Technical Specifications
Parameter Specification
Switch Type General Purpose
Number of Outputs 1
Ratio - Input:Output 1:1
Output Configuration Low Side
Output Type N-Channel
Interface PWM
Voltage - Load 31V (Max)
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Current - Output (Max) 10A
Rds On (Typ) 80mOhm
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TDSO-8-31
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Key Features
  • Single channel device
  • Low output leakage current in OFF state
  • Electrostatic discharge protection (ESD)
  • Embedded protection functions
  • ELV compliant package
  • Green Product (RoHS compliant)
  • AEC Qualified
Applications
  • Automotive body electronics & power distribution
  • Automotive primary power distribution unit
  • Automotive secondary power distribution unit
  • Automotive body control module (BCM)
  • Automotive battery management system (BMS) - high-voltage
