AD8057ARTZ Integrated Circuit Chip 325MHz Voltage Feedback Amplifier with 1.15 kV/us Slew Rate and Low Power 6mA Supply Current

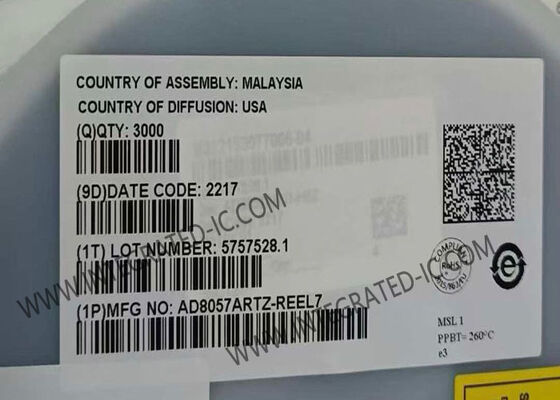

Large Image : AD8057ARTZ Integrated Circuit Chip 325MHz Voltage Feedback Amplifier with 1.15 kV/us Slew Rate and Low Power 6mA Supply Current

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AD8057ARTZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-23-5
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

AD8057ARTZ Integrated Circuit Chip 325MHz Voltage Feedback Amplifier with 1.15 kV/us Slew Rate and Low Power 6mA Supply Current

Description

Part Number:	AD8057ARTZ	Ib - Input Bias Current:	2.5 UA
Number Of Channels:	1 Channel	SR - Slew Rate:	1.15 KV/us
Voltage Gain DB:	55 DB	En - Input Voltage Noise Density:	7 NV/sqrt Hz
Highlight:	325MHz Bandwidth Integrated Circuit Chip , 1.15 kV/us Slew Rate Voltage Feedback Amplifier , Low Power 6mA Supply Current IC Chip

AD8057ARTZ Integrated Circuit Chip 325MHz Voltage Feedback Amplifier SOT-23-5

The AD8057ARTZ is a high-performance voltage feedback amplifier that combines the bandwidth and slew rate typically found in current feedback amplifiers. This low-power amplifier features low quiescent current and operates across a wide supply range from 3V to 12V. It delivers exceptional noise and distortion performance suitable for high-end video systems, along with DC performance parameters rarely available in high-speed amplifiers.

Specifications

Parameter	Value
Amplifier Type	Voltage Feedback
Number of Circuits	1
Slew Rate	1150V/µs
-3dB Bandwidth	325 MHz
Input Bias Current	500 nA
Input Offset Voltage	1 mV
Supply Current	6mA
Minimum Supply Voltage	3 V
Maximum Supply Voltage	12 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package/Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5

Key Features

Low Cost Solution
High Speed Performance
325 MHz -3 dB Bandwidth (G = +1)
1000 V/µs Slew Rate
Gain Flatness 0.1 dB to 28 MHz
Low Power Consumption
5.4 mA/Amplifier Typical Supply Current @ 5V
Low Noise: 7 nV/√Hz
Low Distortion: -85 dBc @ 5 MHz, RL = 1 kΩ
Wide Supply Range: 3V to 12V

Applications

DVD/CD Systems
Photodiode Preamplifiers
Analog-to-Digital Drivers
Professional Camera Filters
