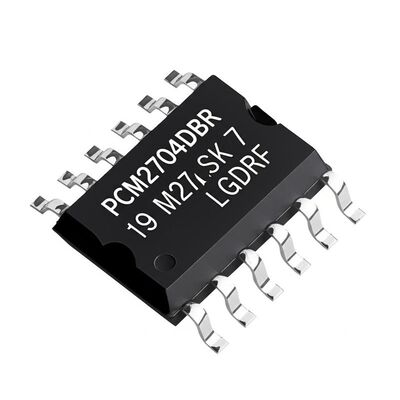

PCM2704DBR Integrated Circuit Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and 16-bit Delta-Sigma Stereo DAC 98 dB SNR

PCM2704DBR Integrated Circuit Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and 16-bit Delta-Sigma Stereo DAC 98 dB SNR
PCM2704DBR Integrated Circuit Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and 16-bit Delta-Sigma Stereo DAC 98 dB SNR PCM2704DBR Integrated Circuit Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and 16-bit Delta-Sigma Stereo DAC 98 dB SNR

Large Image :  PCM2704DBR Integrated Circuit Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and 16-bit Delta-Sigma Stereo DAC 98 dB SNR

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PCM2704DBR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SSOP-28
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

PCM2704DBR Integrated Circuit Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and 16-bit Delta-Sigma Stereo DAC 98 dB SNR

Description
Part Number: PCM2704DBR Number Of Converters:: 2 Converter
Sampling Rate:: 48 KHz Resolution:: 16 Bit
Number Of DAC Outputs:: 2 Output SNR - Signal To Noise Ratio:: 98 DB
Highlight:

USB-Compliant Full-Speed Protocol Controller Integrated Circuit Chip

,

16-bit Delta-Sigma Stereo DAC USB Stereo Audio DAC

,

98 dB SNR PCM2704DBR

PCM2704DBR Integrated Circuit Chip
Single-Chip USB Stereo Audio DAC with USB-Compliant Full-Speed Protocol Controller and S/PDIF
Product Overview
The PCM2704DBR is a single-chip USB stereo audio DAC featuring a USB-compliant full-speed protocol controller and S/PDIF interface. The USB-protocol controller operates without requiring software code, while USB descriptors can be partially modified via external ROM, SPI, or custom mask options. The device utilizes TI's proprietary SpAct architecture to recover audio clock from USB packet data, enabling low-jitter playback through on-chip analog PLLs.
Technical Specifications
Parameter Value
Number of Channels 2
Resolution 16 bit
Sampling Rate 48 kHz
Data Interface SPI, USB
Voltage Supply Source Analog and Digital
Operating Voltage 3V - 3.6V, 5V
Operating Temperature -25°C to 85°C
Key Features
  • On-chip USB interface with full-speed transceivers
  • Fully compliant with USB 1.1 specification (USB-IF certified)
  • No dedicated device driver required
  • Partially programmable descriptors
  • Adaptive isochronous transfer for playback
  • Bus-powered or self-powered operation
  • Sampling rates: 32, 44.1, 48 kHz
  • On-chip clock generator with single 12-MHz clock source
  • 16-bit delta-sigma stereo DAC
  • Analog performance: THD+N 0.006% (RL > 10 kΩ)
  • Signal-to-noise ratio: 98 dB
  • Dynamic range: 98 dB
  • Oversampling digital filter with ±0.04 dB pass-band ripple
  • Single-ended voltage output with analog LPF
  • Multiple HID interfaces (up to 8)
  • S/PDIF output with SCMS
  • External ROM interface
Applications
  • USB headphones
  • USB audio speakers
  • USB CRT/LCD monitors
  • USB audio interface boxes
  • USB-featured consumer audio products
