IPA50R500CE 500V CoolMOS™ N-Channel Power MOSFET Transistor for High Efficiency Applications

IPA50R500CE 500V CoolMOS™ N-Channel Power MOSFET Transistor for High Efficiency Applications
IPA50R500CE 500V CoolMOS™ N-Channel Power MOSFET Transistor for High Efficiency Applications IPA50R500CE 500V CoolMOS™ N-Channel Power MOSFET Transistor for High Efficiency Applications

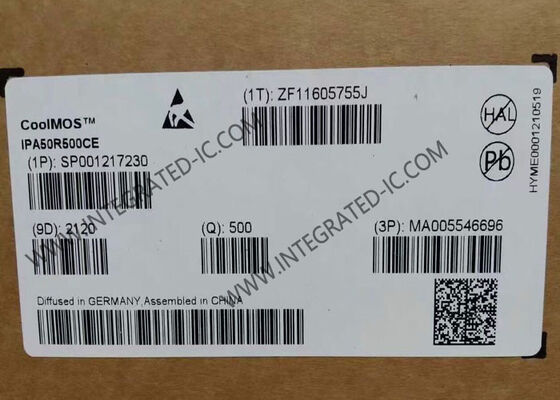

Large Image :  IPA50R500CE 500V CoolMOS™ N-Channel Power MOSFET Transistor for High Efficiency Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IPA50R500CE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-220-3
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IPA50R500CE 500V CoolMOS™ N-Channel Power MOSFET Transistor for High Efficiency Applications

Description
Part Number: IPA50R500CE Transistor Polarity:: N-Channel
Vds - Drain-Source Breakdown Voltage:: 500 V Id - Continuous Drain Current:: 11.1 A
Rds On - Drain-Source Resistance:: 1.17 Ohms Vgs - Gate-Source Voltage:: - 20 V, 20 V
Highlight:

500V Drain-Source Voltage Power MOSFET

,

N-Channel Power MOSFET

,

CoolMOS™ Technology Transistor

IPA50R500CE Integrated Circuit Chip 500V CoolMOS™ N-Channel Power MOSFET Transistors
IPA50R500CE 500V CoolMOS™ CE is a price-performance optimized platform enabling cost-sensitive applications in consumer and lighting markets while meeting highest efficiency standards. This new series provides all benefits of a fast switching superjunction MOSFET while maintaining ease of use and offering the best cost-performance ratio available on the market.
Specifications
Parameter Value
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 7.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 13V
Rds On (Max) @ Id, Vgs 500mOhm @ 2.3A, 13V
Vgs(th) (Max) @ Id 3.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs 18.7 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 433 pF @ 100 V
Power Dissipation (Max) 28W (Tc)
Operating Temperature -40°C ~ 150°C (TJ)
Key Features
  • Extremely low losses due to very low FOM Rdson*Qg and Eoss
  • Very high commutation ruggedness
  • Easy to use and drive
  • Pb-free plating, Halogen free mold compound
  • Qualified for standard grade applications
Product Benefits
  • Better control
  • High efficiency in hard switching applications
  • Higher power density
  • High CoolMOS™ quality and reliability
  • Fully insulated package
Applications
  • PFC stages
  • Hard switching PWM stages
  • Resonant switching stages
  • PC Silverbox, Adapter, LCD & PDP TV applications
  • Indoor lighting systems
