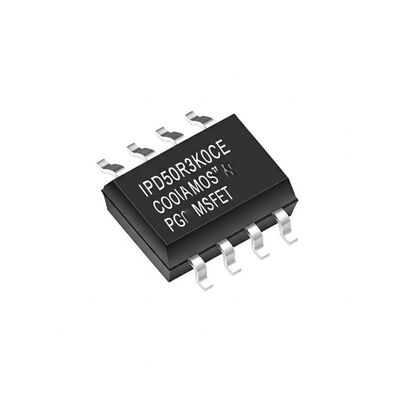

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance
IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

Large Image :  IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IPD50R3K0CE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-252-3
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

Description
Part Number: IPD50R3K0CE Transistor Polarity:: N-Channel
Vds - Drain-Source Breakdown Voltage:: 500 V Id - Continuous Drain Current:: 2.6 A
Rds On - Drain-Source Resistance:: 3 Ohms Vgs - Gate-Source Voltage:: - 20 V, 20 V
Highlight:

500V Drain-Source Breakdown Voltage Integrated Circuit Chip

,

1.7A Continuous Drain Current Power MOSFET Transistor

,

3 Ohms Drain-Source Resistance CoolMOS™ N-Channel

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistors
IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistors
Product Description
IPD50R3K0CE 500V CoolMOS™ CE is a price-performance optimized platform designed for cost-sensitive applications in consumer and lighting markets while maintaining high efficiency standards. This series provides all the benefits of fast-switching superjunction MOSFET technology while ensuring ease of use and offering the best cost-to-performance ratio available on the market.
Technical Specifications
Parameter Value
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 1.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 13V
Rds On (Max) @ Id, Vgs 3Ω @ 400mA, 13V
Vgs(th) (Max) @ Id 3.5V @ 30µA
Gate Charge (Qg) (Max) @ Vgs 4.3 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 84 pF @ 100 V
Power Dissipation (Max) 26W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Key Features
  • Extremely low losses due to very low FOM Rdson*Qg and Eoss
  • Very high commutation ruggedness
  • Easy to use and drive
  • Pb-free plating, Halogen free mold compound
  • Qualified for standard grade applications
Applications
  • PFC stages
  • Hard switching PWM stages
  • Resonant switching stages
  • PC Silverbox, Adapter, LCD & PDP TV
  • Indoor lighting systems
