TLV9004QDRQ1 1MHz Low Power Rail-to-Rail Input and Output Automotive Operational Amplifier Op Amp

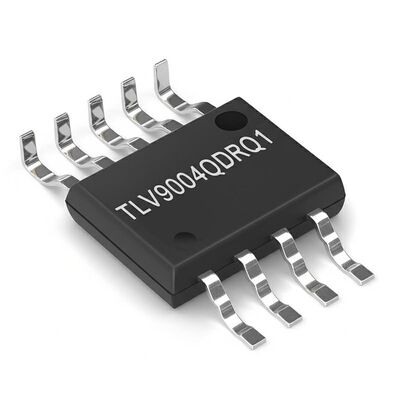

Large Image : TLV9004QDRQ1 1MHz Low Power Rail-to-Rail Input and Output Automotive Operational Amplifier Op Amp

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TLV9004QDRQ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-14
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TLV9004QDRQ1 1MHz Low Power Rail-to-Rail Input and Output Automotive Operational Amplifier Op Amp

Description

Part Number:	TLV9004QDRQ1	Number Of Channels:	4 Channel
GBP - Gain Bandwidth Product:	1 MHz	SR - Slew Rate:	2 V/us
Vos - Input Offset Voltage:	400 UV	Ib - Input Bias Current:	5 PA
Highlight:	1MHz Operational Amplifier , Low Power Op Amp , Rail-to-Rail Input and Output Integrated Circuit Chip

TLV9004QDRQ1 Integrated Circuit Chip 1MHz Low Power RRIO Automotive Operational Amplifier

The TLV9004QDRQ1 is a quad-channel, low-voltage operational amplifier designed for automotive applications. Operating from 1.8V to 5.5V with rail-to-rail input and output capabilities, this cost-effective solution is ideal for space-constrained automotive systems requiring low-voltage operation and high capacitive-load drive.

Specifications

Amplifier Type	Standard (General Purpose)
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	2V/µs
Gain Bandwidth Product	1 MHz
Input Bias Current	5 pA
Input Offset Voltage	400 µV
Supply Current	60µA (x4 Channels)
Output Current per Channel	40 mA
Minimum Supply Voltage	1.8 V
Maximum Supply Voltage	5.5 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC

Key Features

Scalable CMOS amplifier for low-cost applications
Rail-to-rail input and output
Low input offset voltage: ±0.4mV
Unity-gain bandwidth: 1MHz
Low broadband noise: 27nV/√ Hz
Low input bias current: 5pA
Low quiescent current: 60µA/Ch
Unity-gain stable
Internal RFI and EMI filter
Operational at supply voltages as low as 1.8V
Easier to stabilize with higher capacitive load due to resistive open-loop output impedance

Applications

Infotainment and Cluster
Passive safety
Body electronics and lighting
HEV/EV inverter and motor control
On-board (OBC) and wireless charger
Power-train current sensor
Advanced driver assistance systems (ADAS)
Single-supply, low-side, unidirectional current sensing circuit
