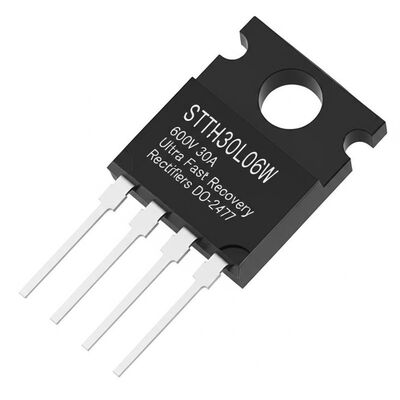

STTH30L06W Integrated Circuit Chip 600V 30A Ultra Fast Recovery Rectifier DO-247-2 Package

Large Image : STTH30L06W Integrated Circuit Chip 600V 30A Ultra Fast Recovery Rectifier DO-247-2 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	STTH30L06W

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	DO-247-2
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

STTH30L06W Integrated Circuit Chip 600V 30A Ultra Fast Recovery Rectifier DO-247-2 Package

Description

Part Number:	STTH30L06W	Vr - Reverse Voltage::	600 V
If - Forward Current::	30 A	Vf - Forward Voltage::	1.55 V
Max Surge Current::	160 A	Ir - Reverse Current::	25 UA
Highlight:	600V Integrated Circuit Chip , 30A Rectifier , Ultra Fast Recovery STTH30L06W

STTH30L06W Integrated Circuit Chip

600V 30A Ultra Fast Recovery Rectifiers DO-247-2 Package

Product Overview

The STTH30L06W utilizes ST Turbo 2 600V technology and is specifically designed for switching power supplies and industrial applications, serving as a rectification and discontinuous mode PFC boost diode.

Technical Specifications

Voltage - DC Reverse (Vr) (Max)	600 V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	1.55 V @ 30 A
Speed	Fast Recovery ≤ 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	90 ns
Current - Reverse Leakage @ Vr	25 µA @ 600 V

Key Features

Ultrafast switching capability
Low reverse current
Low thermal resistance
Reduces switching and conduction losses

Applications

Telecom power supply systems
On-Board Chargers (OBC)
Industrial equipment
Switching diode applications
