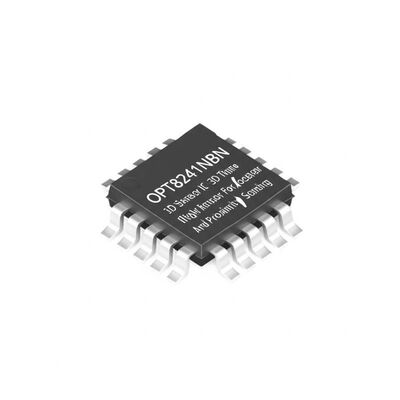

OPT8241NBN Sensor IC 3D Time of Flight Image Sensor with 150 fps QVGA 320 x 240 Resolution for 0°C to 70°C Operation

OPT8241NBN Sensor IC 3D Time of Flight Image Sensor with 150 fps QVGA 320 x 240 Resolution for 0°C to 70°C Operation
OPT8241NBN Sensor IC 3D Time of Flight Image Sensor with 150 fps QVGA 320 x 240 Resolution for 0°C to 70°C Operation OPT8241NBN Sensor IC 3D Time of Flight Image Sensor with 150 fps QVGA 320 x 240 Resolution for 0°C to 70°C Operation

Large Image :  OPT8241NBN Sensor IC 3D Time of Flight Image Sensor with 150 fps QVGA 320 x 240 Resolution for 0°C to 70°C Operation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: OPT8241NBN
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: COG-78
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

OPT8241NBN Sensor IC 3D Time of Flight Image Sensor with 150 fps QVGA 320 x 240 Resolution for 0°C to 70°C Operation

Description
Part Number: OPT8241NBN Image Size:: 320 H X 240 V
Maximum Operating Temperature:: + 70 C Minimum Operating Temperature:: 0 C
Number Of Frames Per Second:: 150 Fps Operating Supply Current:: 40 MA
Highlight:

150 fps Sensor IC

,

QVGA 320 x 240 resolution 3D Time of Flight Image Sensor

,

0°C to 70°C operating temperature ToF Sensor

OPT8241NBN 3D Time-of-Flight Image Sensor
High-resolution QVGA (320 x 240) 3D Time-of-Flight sensor for location and proximity sensing applications with frame rates up to 150 FPS.
Product Overview
The OPT8241NBN time-of-flight (ToF) sensor integrates ToF sensing with an optimized analog-to-digital converter (ADC) and a versatile, programmable timing generator (TG). The device delivers quarter video graphics array (QVGA 320 x 240) resolution data at frame rates up to 150 frames per second (600 readouts per second).
Specifications
Type 3D Time of Flight
Active Pixel Array 320H x 240V
Frames per Second 150.0
Voltage Supply 1.5V ~ 3.3V
Key Features
  • Imaging Array: 320 x 240 Array, 1/3" Optical Format, Pixel Pitch: 15 μm, Up to 150 Frames per Second
  • Optical Properties: Responsivity: 0.35 A/W at 850 nm, Demodulation Contrast: 45% at 50 MHz, Demodulation Frequency: 10 MHz to 100 MHz
  • Output Data Format: 12-Bit Phase Correlation Data, 4-Bit Common-Mode (Ambient)
  • Chipset Interface: Compatible with TI's Time-of-Flight Controller OPT9221
  • Sensor Output Interface: CMOS Data Interface (50-MHz DDR, 16-Lane Data, Clock and Frame Markers), LVDS: 600 Mbps, 3 Data Pairs, 1-LVDS Bit Clock Pair, 1-LVDS Sample Clock Pair
  • Timing Generator (TG): Addressing Engine with Programmable Region of Interest (ROI), Modulation Control, De-Aliasing, Master/Slave Sync Operation, I2C Slave Interface for Control
  • Power Supply: 3.3-V I/O: Analog, 1.8-V Analog, Digital, I/O, 1.5-V Demodulation (Typical)
  • Optimized Optical Package (COG-78): 8.757 mm * 7.859 mm * 0.7 mm, Integrated Optical Band-Pass Filter (830 nm to 867 nm), Optical Fiducials for Easy Alignment
  • Operating Temperature: 0°C to 70°C
Applications
  • Location and Proximity Sensing
  • 3D Scanning
  • 3D Machine Vision
  • Security and Surveillance
  • Gesture Controls
  • Augmented and Virtual Reality
