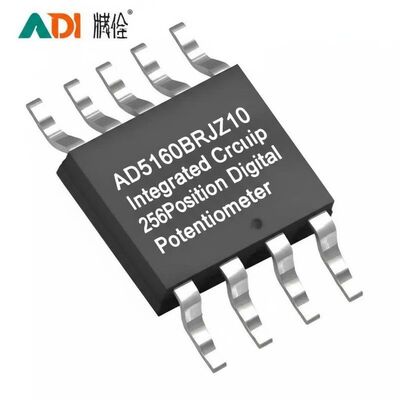

AD5160BRJZ10 Digital Potentiometer Integrated Circuit Chip with 256 Position 10 kOhms Resistance and SPI Compatible Interface

Large Image : AD5160BRJZ10 Digital Potentiometer Integrated Circuit Chip with 256 Position 10 kOhms Resistance and SPI Compatible Interface

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AD5160BRJZ10

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-23-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

AD5160BRJZ10 Digital Potentiometer Integrated Circuit Chip with 256 Position 10 kOhms Resistance and SPI Compatible Interface

Description

Part Number:	AD5160BRJZ10	Resistance:	10 KOhms
Temperature Coefficient:	35 PPM / C	Tolerance:	15 %
Taps Per POT:	256 Tap	Operating Supply Current:	3 UA
Highlight:	256 Position Digital Potentiometer , 10 kOhms Integrated Circuit Chip , SPI Compatible AD5160BRJZ10

AD5160BRJZ10 Integrated Circuit Chip

256 Position Digital Potentiometer in SOT-23-8 Package

Product Overview

The AD5160BRJZ10 is a 256-position SPI-compatible digital potentiometer that provides a compact 2.9 mm × 3 mm packaged solution for precision adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors but with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.

Technical Specifications

Parameter	Value
Taper	Linear
Configuration	Potentiometer
Number of Circuits	1
Number of Taps	256
Resistance	10k Ohms
Interface	SPI
Memory Type	Volatile
Voltage Supply	2.7V ~ 5.5V
Tolerance	±15%
Temperature Coefficient	45ppm/°C
Mounting Type	Surface Mount
Package	SOT-23-8
Operating Temperature	-40°C ~ 125°C
Wiper Resistance	50 Ohms (Typical)

Key Features

256-position digital resolution
End-to-end resistance options: 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
Compact SOT-23-8 package (2.9 mm × 3 mm)
SPI-compatible interface
Power-on preset to midscale
Single supply operation: 2.7 V to 5.5 V
Low temperature coefficient: 45 ppm/°C
Low power consumption: IDD = 8 μA
Wide operating temperature range: -40°C to +125°C
Evaluation board available

Applications

Mechanical potentiometer replacement in new designs, transducer adjustment of pressure, temperature, position, chemical, and optical sensors, RF amplifier biasing, gain control and offset adjustment.
