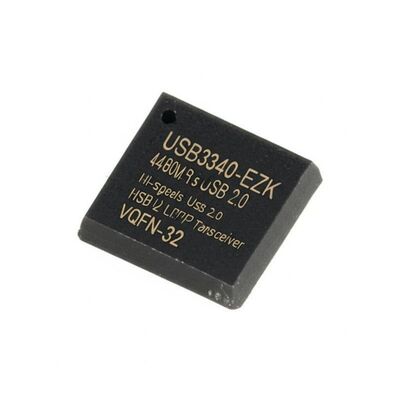

USB3340-EZK Integrated Circuit Chip 480Mb/s Hi-Speed USB 2.0 ULPI Transceiver in VQFN-32 Package

Large Image : USB3340-EZK Integrated Circuit Chip 480Mb/s Hi-Speed USB 2.0 ULPI Transceiver in VQFN-32 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	USB3340-EZK

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VQFN-32
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

USB3340-EZK Integrated Circuit Chip 480Mb/s Hi-Speed USB 2.0 ULPI Transceiver in VQFN-32 Package

Description

Part Number:	USB3340-EZK	Standard:	USB 2.0
Speed:	High Speed (HS)	Data Rate:	480 Mb/s
Interface Type:	ULPI	Operating Supply Current:	1.5 A
Highlight:	480 Mb/s USB Transceiver , ULPI Interface USB3340-EZK , VQFN-32 Package Integrated Circuit Chip

USB3340-EZK Integrated Circuit Chip

480Mb/s Hi-Speed USB 2.0 ULPI Transceiver in VQFN-32 Package

Product Overview

The USB3340-EZK is a Hi-Speed USB 2.0 Transceiver providing a physical layer (PHY) solution optimized for portable electronic devices. This component supports both commercial and industrial temperature applications and is designed for low power consumption with minimal operating and standby currents.

Technical Specifications

Parameter	Value
Type	Transceiver
Protocol	USB 2.0
Number of Drivers/Receivers	1/1
Receiver Hysteresis	150 mV
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN

Key Features

Integrated VBUS over-voltage protection (up to +30V)
Integrated USB switch enables connector as single port for data, charging and audio
Integrated regulators allow single supply operation
±8kV HBM with up to ±25kV IEC (contact/air)
Supports wide variety of common reference clock frequencies
USB-IF Battery Charger revision 1.2 support
Ultra-low standby current
"Wrapper-less" architecture for optimized timing performance
Hi-Speed USB On-The-Go (OTG) revision 2.0 compliant
Link Power Management (LPM)
Industrial (-40°C to 85°C) temperature range options
QFN, RoHS-compliant package

Applications

Digital Still/Video Cameras
Smartphones/Cell Phones
GPS Personal Navigation Devices
External Hard Disk Drives
Gaming Consoles
