SS02-0B00-02 PEX88096 Ethernet IC PCI Express Switch with 98-Lane 98-Port PCI Express Gen 4.0 ExpressFabric Platform

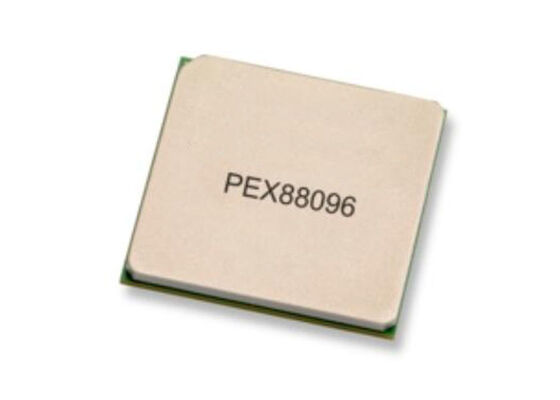

Large Image : SS02-0B00-02 PEX88096 Ethernet IC PCI Express Switch with 98-Lane 98-Port PCI Express Gen 4.0 ExpressFabric Platform

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SS02-0B00-02

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SS02-0B00-02 PEX88096 Ethernet IC PCI Express Switch with 98-Lane 98-Port PCI Express Gen 4.0 ExpressFabric Platform

Description

Part Number:	SS02-0B00-02	Description:	PEX88096 Switch
Number Of Lanes:	98 Lanes	Number Of Ports:	98 Ports
Typical Power Consumption:	35.78W	Operating Temperature:	0°C To 70°C
Highlight:	98-Lane Ethernet IC , 98-Port PCI Express Switch , PCI Express Gen 4.0 PEX88096

SS02-0B00-02 Ethernet IC PEX88096 Switch 98-Lane 98-Port PCI Express Gen 4.0 ExpressFabric Platform

The SS02-0B00-02 is a PEX88096 Switch featuring a 98-Lane, 98-Port PCI Express Gen 4.0 ExpressFabric Platform designed for data center and cloud infrastructure applications.

Product Overview

This advanced PCIe switch enables data center and cloud providers to build flexible, scalable rack infrastructures with significant performance advantages:

Create cost-effective high-availability hyperscale systems by enabling communication between in-rack hosts and endpoints using PCIe
Simplify connectivity while providing the highest PCIe switching performance available for data center servers, storage, and networks
Reduce latency, system complexity, and power consumption in data intensive environments
Take advantage of industry-first features for most demanding hyper-converged, Artificial Intelligence, Machine Learning, NVMe JBOFs and rack scale systems

Technical Specifications

Part Number	SS02-0B00-02
Description	PEX88096 Switch
Application	PCI Express®
Number of Lanes	98 lanes
Number of Ports	98 ports
Latency	105 ns
Serial HPC	All ports
NT Ports	48
Typical Power Consumption	35.78W
Package	BGA
Package Dimensions	37.5mm x 42.5mm
Operating Temperature	0°C to 70°C

Additional Features

Up to 48 DMA channels/functions
Embedded ARM Cortex R4 CPU
Eliminate the topology restrictions of PCIe
Fan-out CPU PCIe ports to connect to large number of I/Os or other subsystems in Servers and Storage systems. No software will be required in this application.
Purpose built to support NVMe All Flash Array (AFA) systems
