IW7039-00-QFN4 Integrated Circuit Chip 32-Channel LED Backlighting Driver with High Dynamic Range (HDR) and 66 mA Output Current

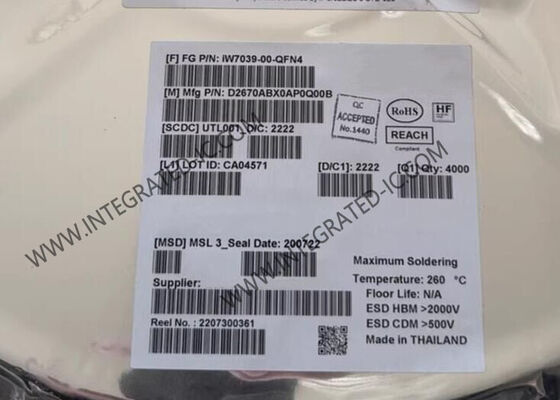

Large Image : IW7039-00-QFN4 Integrated Circuit Chip 32-Channel LED Backlighting Driver with High Dynamic Range (HDR) and 66 mA Output Current

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IW7039-00-QFN4

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	IBGA-107
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

IW7039-00-QFN4 Integrated Circuit Chip 32-Channel LED Backlighting Driver with High Dynamic Range (HDR) and 66 mA Output Current

Description

Part Number:	IW7039-00-QFN4	Number Of Outputs:	32 Output
Output Current:	66 MA	Operating Frequency:	44 Hz To 32 KHz
Input Voltage:	300 MV To 20 V	Operating Temperature:	-40°C ~ 85°C
Highlight:	32-Channel LED Driver , High Dynamic Range (HDR) Backlighting Driver , 66 mA Output Current Integrated Circuit Chip

IW7039-00-QFN4 Integrated Circuit Chip 32-Channel LED Back Lighting Driver QFN48

Product Overview

The IW7039-00-QFN4 is a high-precision, 32-channel LED backlighting driver with integrated current sinks designed for High Dynamic Range (HDR) LCD displays. This advanced driver incorporates 32 precision current sinks with digital control technology to enhance brightness control in direct backlit HDR displays. The digital control block utilizes BroadLED™ adaptive switch technology, optimizing thermal performance by regulating voltage drop across each LED string while enabling precision matching with unbinned LEDs.

Specifications

Type	Linear
Internal Switch(s)	Yes
Number of Outputs	32
Voltage - Supply (Min)	9V
Voltage - Supply (Max)	16V
Dimming	Analog, PWM
Applications	Backlight
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN (7x7)

Key Features

32-channel LED driver with internal MOSFET current sinks
Internal current setting resistors - No external resistors required
65V maximum output voltage per channel
Patented BroadLED™ adaptive switch mode technology for high current matching at maximum efficiency
Reduces power dissipation requirements
Enables use of cost-effective, loosely binned LED arrays for lower BOM cost
Supports 12V (9V to 16V) or 5V supply voltage operation
AnyMode™ comprehensive dimming control improves picture quality
12-bit PWM dimming, 10-bit independent analog dimming
Head, tail, center mode PWM alignments to reduce motion blur
PWM dimming range: 0% to 99.9%
Programmable slew rate for enhanced EMI control
Comprehensive protection features including individual LED short protection, open detection, over-temperature protection, and microcontroller interrupt interface
High accuracy internal current setting - 66mA per channel max; supports 2-channel grouping
SPI daisy-chain interface simplifies design for supporting more than 16 LED strings
3 SPI communication protection modes in one LED driver
Internal PLL ensures jitter-free operation even with noisy VSYNC signals

Applications

Dimming System for Monitors
Mini-LED TV Backlight Unit - Large Matrix
Automotive Cockpit System with Haptics
Direct backlighting for HDR LCD TV and monitor displays
