EFR32MG1V132F256GM32-C0R Wireless Communication Module with 2.4 GHz Frequency 256 kB Flash and 19.5 dBm Output Power

Large Image : EFR32MG1V132F256GM32-C0R Wireless Communication Module with 2.4 GHz Frequency 256 kB Flash and 19.5 dBm Output Power

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	EFR32MG1V132F256GM32-C0R

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-32
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

EFR32MG1V132F256GM32-C0R Wireless Communication Module with 2.4 GHz Frequency 256 kB Flash and 19.5 dBm Output Power

Description

Part Number:	EFR32MG1V132F256GM32-C0R	Operating Frequency:	2.4 GHz
Maximum Data Rate:	1 Mbps	Output Power:	19.5 DBm
Sensitivity:	- 94 DBm	Program Memory Size:	256 KB
Highlight:	2.4 GHz Wireless Communication Module , 256 kB Flash Wireless SoC , 19.5 dBm Output Power EFR32MG1 Mighty Gecko SoC

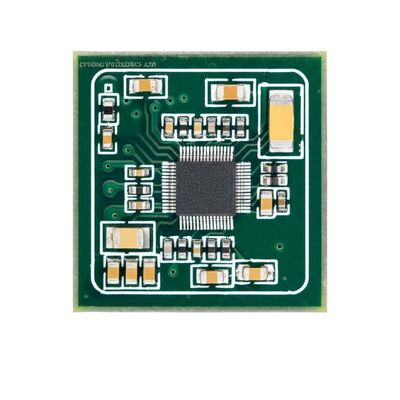

EFR32MG1V132F256GM32-C0R Wireless Communication Module

The EFR32MG1V132F256GM32-C0R is an EFR32MG1 Mighty Gecko SoC with integrated serial flash. This module integrates 512 kB serial flash in the package to support over-the-air updates. The compact 5x5 QFN32 package is ideal for space-constrained products requiring support for ZigBee, Thread, BLE, and proprietary networks.

Specifications

Type	TxRx + MCU
RF Family/Standard	802.15.4
Protocol	Zigbee®
Frequency	2.4GHz
Data Rate (Max)	250kbps
Power - Output	8dBm
Sensitivity	-99dBm
Memory Size	256kB Flash, 32kB RAM
Serial Interfaces	I2C, I2S, SPI, UART
GPIO	16
Voltage - Supply	1.85V ~ 3.8V
Current - Receiving	8.7mA
Current - Transmitting	8.2mA ~ 126.7mA
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)

Key Features

Low Power Wireless System-on-Chip
High Performance 32-bit 40 MHz ARM Cortex®-M4 with DSP instruction and floating point unit
256 kB flash program memory
512 kB integrated serial flash memory
32 kB RAM data memory
2.4 GHz radio operation
TX power up to 19.5 dBm
Low Energy Consumption: 8.7 mA RX current at 2.4 GHz
Wake on Radio with signal strength detection and frame detection
High Receiver Performance with -99 dBm sensitivity
Supported Modulation Formats: 2-FSK / 4-FSK, OQPSK / (G)MSK

Applications

Connected Home
Lighting Systems
Home and Building Automation
Security Systems
