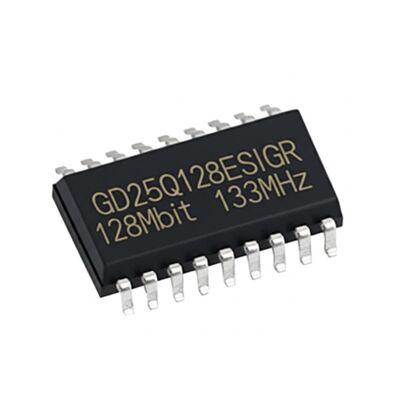

GD25Q128ESIGR 128Mbit 133MHz Quad SPI Serial NOR Flash Memory IC Chip

GD25Q128ESIGR 128Mbit 133MHz Quad SPI Serial NOR Flash Memory IC Chip
GD25Q128ESIGR 128Mbit 133MHz Quad SPI Serial NOR Flash Memory IC Chip GD25Q128ESIGR 128Mbit 133MHz Quad SPI Serial NOR Flash Memory IC Chip

Large Image :  GD25Q128ESIGR 128Mbit 133MHz Quad SPI Serial NOR Flash Memory IC Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: GD25Q128ESIGR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

GD25Q128ESIGR 128Mbit 133MHz Quad SPI Serial NOR Flash Memory IC Chip

Description
Part Number: GD25Q128ESIGR Memory Size:: 128 Mbit
Supply Voltage - Min:: 2.7 V Supply Voltage - Max:: 3.6 V
Active Read Current - Max:: 25 MA Maximum Clock Frequency:: 133 MHz
Highlight:

128Mbit Memory IC Chip

,

133MHz Serial NOR Flash Memory IC

,

Quad SPI Flash Memory IC

GD25Q128ESIGR Memory IC Chip 128Mbit 133MHz Serial NOR Flash Memory IC
The GD25Q128ESIGR is a high-performance 128M-bit Serial NOR Flash Memory IC that supports standard SPI, Dual SPI, and Quad SPI interfaces. This memory chip delivers exceptional data transfer speeds up to 532Mbit/s with advanced security features and low power consumption.
Technical Specifications
Specification Details
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 128Mbit
Memory Organization 16M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 133 MHz
Write Cycle Time 70µs (Word), 2.4ms (Page)
Access Time 7 ns
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C (TA)
Key Features
  • 128M-bit Serial Flash with 16M-Byte capacity
  • 256 Bytes per programmable page
  • Standard, Dual, and Quad SPI interfaces
  • High-speed clock frequency up to 133MHz
  • Dual I/O data transfer up to 266Mbits/s
  • Quad I/O data transfer up to 532Mbits/s
  • Software and hardware write protection
  • Top/Bottom block protection
  • 100,000 Program/Erase cycles minimum
  • 20-year data retention typical
  • Execute in Place (XiP) operation support
  • Fast program/erase speeds with optimized timing
  • Flexible architecture with uniform sectors and blocks
  • Low power consumption: 14μA standby, 1μA deep power down
  • Advanced security features including 128-bit Unique ID
  • Serial Flash Discoverable Parameters (SFDP) register
  • 3x1024 Byte Security Registers with OTP Locks
  • Single power supply voltage (2.7-3.6V)
