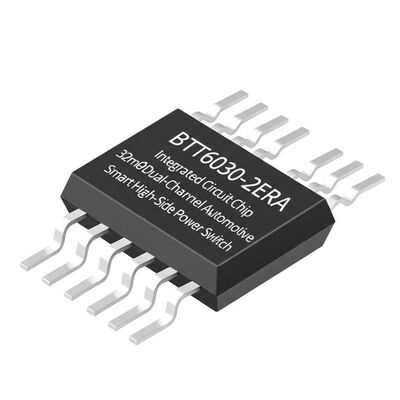

BTT6030-2ERA 32mΩ Dual-Channel Automotive Smart High-Side Power Switch Integrated Circuit Chip PROFET®

Large Image : BTT6030-2ERA 32mΩ Dual-Channel Automotive Smart High-Side Power Switch Integrated Circuit Chip PROFET®

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BTT6030-2ERA

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TDSO-14
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

BTT6030-2ERA 32mΩ Dual-Channel Automotive Smart High-Side Power Switch Integrated Circuit Chip PROFET®

Description

Part Number:	BTT6030-2ERA	Number Of Outputs:	2
Voltage - Load:	5V ~ 36V	Rds On (Typ):	32mOhm
Current - Output (Max):	4A	Operating Temperature:	-40°C ~ 150°C (TJ)
Highlight:	32mΩ Integrated Circuit Chip , Dual-Channel Power Switch , Automotive PROFET®

BTT6030-2ERA Integrated Circuit Chip 32mΩ Dual-Channel Automotive Smart High-Side Power Switch

The BTT6030-2ERA is a 32mΩ dual-channel Smart High-Side Power Switch housed in a PG-TDSO-14 Exposed Pad package. This integrated circuit features comprehensive protective functions and diagnostic capabilities, utilizing advanced Smart6 technology. Specifically engineered for demanding automotive environments, it efficiently drives lamps up to 3 x P21W24V or 1 x 70W 24V, as well as LED lighting systems.

Technical Specifications

Parameter	Value
Series	PROFET®
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	5V ~ 36V
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	4A
Rds On (Typ)	32mOhm
Input Type	Non-Inverting
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSO-14-31
Package / Case	14-SOIC (0.154", 3.90mm Width) Exposed Pad

Key Features

Dual-channel device design
Very low stand-by current consumption
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent from load ground
Very low power DMOS leakage current in OFF state
Green product (RoHS compliant) and AEC qualified

Applications

Suitable for resistive, inductive and capacitive loads
Replaces electromechanical relays, fuses and discrete circuits
Most suitable for loads with high inrush current, such as lamps
Ideal for 12 V and 24 V Trucks and Transportation Systems
