MP9943GQ-Z Integrated Circuit Chip High Efficiency 3A 36V Synchronous Step Down Converter With Power Good

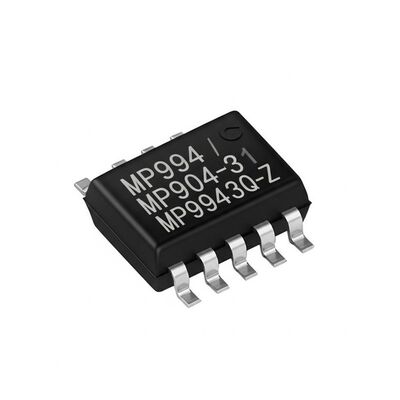

Large Image : MP9943GQ-Z Integrated Circuit Chip High Efficiency 3A 36V Synchronous Step Down Converter With Power Good

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MP9943GQ-Z

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	8-VDFN
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MP9943GQ-Z Integrated Circuit Chip High Efficiency 3A 36V Synchronous Step Down Converter With Power Good

Description

Part Number:	MP9943GQ-Z	Number Of Outputs:	1
Voltage - Input (Min):	4V	Voltage - Input (Max):	36V
Voltage - Output (Min/Fixed):	0.8V	Voltage - Output (Max):	28.5V
Highlight:	High Efficiency Integrated Circuit Chip , 3A Output Current Synchronous Step Down Converter , 36V Input Voltage MP9943GQ-Z

MP9943GQ-Z Integrated Circuit Chip

High Efficiency 3A 36V Synchronous Step Down Converter With Power Good

The MP9943GQ-Z is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. This compact solution delivers 3A peak output current with excellent load and line regulation across a wide input supply range. Synchronous mode operation ensures higher efficiency throughout the output current load range.

Specifications

Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	28.5V
Current - Output	3A
Frequency - Switching	410kHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)

Key Features

Wide 4V to 36V continuous operating input range
85mΩ/55mΩ low RDS(ON) internal power MOSFETs
High-efficiency synchronous mode operation
410kHz switching frequency
Synchronizes from 200kHz to 2.2MHz external clock
High duty cycle for automotive cold-crank applications
Internal power-save mode
Internal soft-start functionality
Power good indicator
Over current protection with hiccup mode
Thermal shutdown protection
Output adjustable from 0.8V
Available in QFN-8 (3mmx3mm) package

Applications

General consumer electronics
Multi-function printers (MFP)
Distributed power systems
