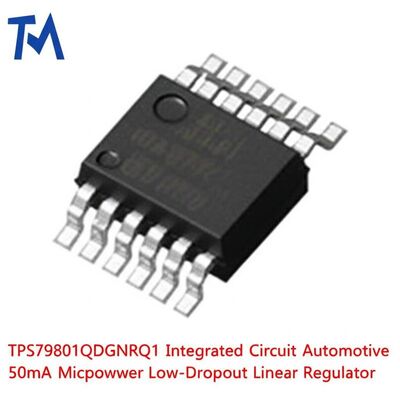

TPS79801QDGNRQ1 Integrated Circuit Chip Automotive Grade 50mA Low-Dropout LDO Linear Regulator

Large Image : TPS79801QDGNRQ1 Integrated Circuit Chip Automotive Grade 50mA Low-Dropout LDO Linear Regulator

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS79801QDGNRQ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MSOP-8
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

TPS79801QDGNRQ1 Integrated Circuit Chip Automotive Grade 50mA Low-Dropout LDO Linear Regulator

Description

Part Number:	TPS79801QDGNRQ1	Output Current::	50 MA
Number Of Outputs::	1 Output	Quiescent Current::	40 UA
Dropout Voltage::	300 MV	Ib - Input Bias Current::	40 UA
Highlight:	50mA Integrated Circuit Chip , Low-Dropout LDO Linear Regulator , Automotive Grade Regulator

TPS79801QDGNRQ1 Integrated Circuit Chip

Automotive 50mA Micropower Low-Dropout Linear Regulator

Product Overview

The TPS79801QDGNRQ1 is the first device in a line of 50V high-voltage micropower low-dropout (LDO) linear regulators. This automotive-grade component delivers 50mA output current with an exceptionally low dropout voltage of only 300mV. Engineered for low quiescent current and high-voltage (50V) applications, it features 40µA operating current and 1µA quiescent current in shutdown mode, making it ideal for battery-powered systems and high-voltage applications.

Technical Specifications

Parameter	Value
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	50V
Voltage - Output (Min/Fixed)	1.275V
Voltage - Output (Max)	28V
Voltage Dropout (Max)	0.55V @ 50mA
Current - Output	50mA
Current - Quiescent (Iq)	80 µA
Current - Supply (Max)	3.3 mA
PSRR	65dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Grade	Automotive

Key Features

AEC-Q100 qualified for automotive applications
Temperature grade 1: −40°C to +125°C, TA
Wide input voltage range: 3V to 50V
Low quiescent current: 40μA (typical)
Low dropout voltage: 300mV (typical)
Output current: 50mA
No input protection diodes needed
Adjustable output: From 1.275V to 28V
Quiescent current in shutdown: 1μA
Stable with 1μF output capacitor
Stable with aluminum, tantalum, or ceramic capacitors
Reverse input-battery protection
Reverse output current flow protection
Thermal limiting
Available in 8-pin HVSSOP PowerPAD device package

Applications

Low-current, high-voltage regulators
Regulators for battery-powered systems
Telecom infrastructure
Automotive electronics
