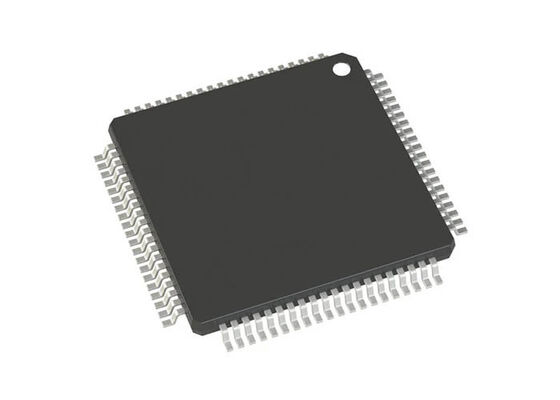

AD5371BSTZ 40-Channel 14-Bit Voltage Output DAC Integrated Circuit Chip 80-Lead LQFP

The AD5371BSTZ is a 40-channel, 14-bit, serial input, voltage output digital-to-analog converter for high density analogue output systems. Each channel carries a programmable gain and offset adjust register and is guaranteed monotonic to 14 bits, so channel-to-channel errors can be removed in system.

The device operates with VSS from -16.5 V to -4.5 V and VDD from 9 V to 16.5 V, producing a nominal output span of -4 V to +8 V and up to four times the reference voltage. Output amplifiers require 1.4 V headroom at 1 mA, and a thermal shutdown circuit protects the output stage.

A high speed serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards handles clocks up to 50 MHz, with an additional 100 MHz LVDS serial interface. All DAC registers can be updated simultaneously through the LDAC input. The AD5371BSTZ is supplied in an 80-lead LQFP measuring 12 mm x 12 mm x 1.4 mm.

Because AD5371 devices are pin and software compatible within each package group, a design can move between AD5371 variants without rewriting firmware.

• 40 voltage output channels, 14-bit resolution
• Guaranteed monotonic to 14 bits
• Nominal output span -4 V to +8 V, up to 4 x VREF
• VSS -16.5 V to -4.5 V, VDD 9 V to 16.5 V
• SPI, QSPI, MICROWIRE and DSP compatible interface up to 50 MHz
• 100 MHz LVDS serial interface
• Per-channel programmable gain and offset adjust
• Simultaneous update of all DAC outputs, thermal shutdown
• 80-lead LQFP package, 12 mm x 12 mm x 1.4 mm

• Automatic test equipment pin drivers and level setting
• Industrial multi-channel analogue output
• Calibration and instrumentation systems
• Programmable reference banks
• High density control and automation
• Drop-in upgrades across the AD5371 series

The LQFP version of the AD5371 keeps the same 40 calibrated 14-bit channels and serial interface, fitting designs that prefer a leaded package for inspection and rework.
