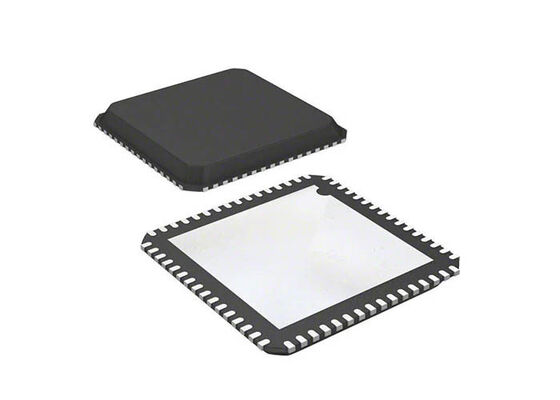

AD5372BCPZ 32-Channel 16-Bit Voltage Output DAC Integrated Circuit Chip 64-Lead LFCSP

The AD5372BCPZ is a 32-channel, 16-bit, serial input, voltage output digital-to-analog converter designed for high channel count analogue systems that need fine resolution. Every channel is guaranteed monotonic to 16 bits and includes a programmable gain and offset adjust register for system calibration.

Outputs can span up to four times the reference voltage, with a nominal range of -4 V to +8 V. The device operates from VSS between -16.5 V and -4.5 V and VDD between 9 V and 16.5 V, and the output amplifiers require 1.4 V of headroom at 1 mA load current.

The AD5372BCPZ provides a high speed serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards at up to 50 MHz, and all outputs can be updated simultaneously by taking LDAC low. Supplied in a 64-lead LFCSP measuring 9 mm x 9 mm with exposed pad, it suits compact ATE and instrumentation boards.

The AD5372 family covers several resolution, reference and package options. Because AD5372 devices are pin and software compatible within each package group, a design can move between AD5372 variants without rewriting firmware.

• 32 voltage output channels, 16-bit resolution
• Guaranteed monotonic to 16 bits
• Nominal output span -4 V to +8 V, up to 4 x VREF
• VSS -16.5 V to -4.5 V, VDD 9 V to 16.5 V
• SPI, QSPI, MICROWIRE and DSP compatible interface up to 50 MHz
• Per-channel programmable gain and offset adjust
• Simultaneous update of all DAC outputs
• 64-lead LFCSP, 9 mm x 9 mm with exposed pad

• Automatic test equipment level setting
• Multi-channel industrial control
• Instrumentation and calibration hardware
• Programmable voltage and current sources
• High resolution analogue output arrays
• Drop-in upgrades across the AD5372 series

Thirty-two monotonic 16-bit channels with per-channel calibration make the AD5372BCPZ a compact analogue output engine for ATE and precision instrumentation.
