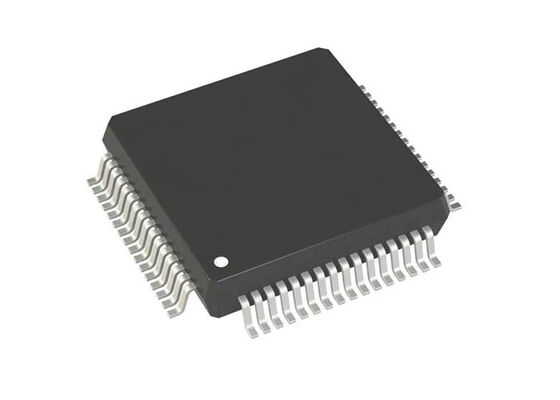

AD5372BSTZ 32-Channel 16-Bit Voltage Output DAC Integrated Circuit Chip 64-Lead LQFP

The AD5372BSTZ is a 32-channel, 16-bit, voltage output digital-to-analog converter with a serial input, built for multi-channel systems requiring both resolution and channel density. Each output is monotonic to 16 bits and has dedicated gain and offset adjust registers for in-system calibration.

The output amplifier stage delivers a nominal -4 V to +8 V span and can reach four times the applied reference. Supplies may range from -16.5 V to -4.5 V on VSS and 9 V to 16.5 V on VDD, with 1.4 V headroom required at 1 mA output current.

A high speed serial port is compatible with SPI, QSPI, MICROWIRE and DSP interfaces and supports clock rates up to 50 MHz, and all DAC outputs can be updated at once through the LDAC pin. The AD5372BSTZ is offered in a 64-lead LQFP measuring 10 mm x 10 mm, suited to leaded assembly lines.

The AD5372 family covers several resolution, reference and package options. Because AD5372 devices are pin and software compatible within each package group, a design can move between AD5372 variants without rewriting firmware.

• 32 voltage output channels, 16-bit resolution
• Guaranteed monotonic to 16 bits
• Nominal output span -4 V to +8 V, up to 4 x VREF
• VSS -16.5 V to -4.5 V, VDD 9 V to 16.5 V
• SPI, QSPI, MICROWIRE and DSP compatible interface up to 50 MHz
• Per-channel programmable gain and offset adjust
• Simultaneous update of all DAC outputs
• 64-lead LQFP, 10 mm x 10 mm

• ATE pin electronics and level setting
• Industrial multi-channel analogue output
• Precision calibration systems
• Programmable reference and bias banks
• Automation and process control
• Drop-in upgrades across the AD5372 series

In a 10 mm LQFP, the AD5372BSTZ delivers 32 calibrated 16-bit outputs with a simple serial control path, replacing large discrete DAC arrays.
