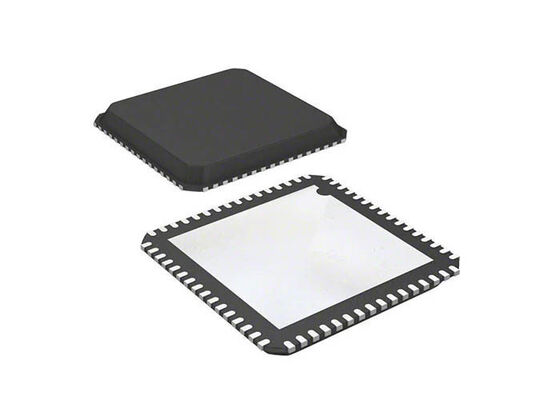

AD5373BCPZ 32-Channel 14-Bit Voltage Output DAC Integrated Circuit Chip 64-Lead LFCSP

The AD5373BCPZ is a 32-channel, 14-bit, serial input, voltage output digital-to-analog converter that shares the architecture of the 16-bit AD5372 while providing 14-bit resolution. Each channel is guaranteed monotonic and includes gain and offset adjustment registers so that system errors can be trimmed channel by channel.

Outputs are buffered on chip and referenced to external SIGGND inputs, with a nominal span of -4 V to +8 V and a maximum of four times the reference voltage. Supply rails span -16.5 V to -4.5 V on VSS and 9 V to 16.5 V on VDD, and the output amplifiers need 1.4 V headroom at 1 mA.

The serial interface is compatible with SPI, QSPI, MICROWIRE and DSP standards and runs at up to 50 MHz, with simultaneous update of all outputs through LDAC. Packaged in a 64-lead LFCSP with exposed pad, the AD5373BCPZ targets ATE and industrial systems where 14 bits are sufficient and cost and board space matter.

The AD5373 family covers several resolution, reference and package options. Because AD5373 devices are pin and software compatible within each package group, a design can move between AD5373 variants without rewriting firmware.

• 32 voltage output channels, 14-bit resolution
• Guaranteed monotonic to 14 bits
• Nominal output span -4 V to +8 V, up to 4 x VREF
• VSS -16.5 V to -4.5 V, VDD 9 V to 16.5 V
• SPI, QSPI, MICROWIRE and DSP compatible interface up to 50 MHz
• Per-channel programmable gain and offset adjust
• Simultaneous update of all DAC outputs
• 64-lead LFCSP, 9 mm x 9 mm with exposed pad

• Level setting in automatic test equipment
• Industrial multi-channel control
• Programmable voltage sources
• Calibration and trim systems
• Compact analogue output modules
• Drop-in upgrades across the AD5373 series

With 32 monotonic 14-bit channels in a 9 mm LFCSP, the AD5373BCPZ provides the channel density of the AD5372 family at 14-bit resolution and lower cost.
