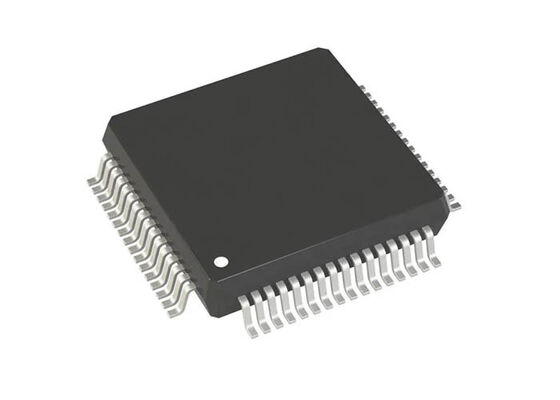

AD5373BSTZ 32-Channel 14-Bit Voltage Output DAC Integrated Circuit Chip 64-Lead LQFP

The AD5373BSTZ is a 32-channel, 14-bit, voltage output digital-to-analog converter with a serial input, matching the 16-bit AD5372 pin for pin at 14-bit resolution. Every channel is guaranteed monotonic and carries programmable gain and offset registers for system calibration.

Each output is gained and buffered on chip with respect to an external SIGGND input, producing a nominal -4 V to +8 V span and up to four times the reference voltage. The device runs from VSS of -16.5 V to -4.5 V and VDD of 9 V to 16.5 V, with 1.4 V output headroom at 1 mA.

A high speed serial interface supports SPI, QSPI, MICROWIRE and DSP formats at up to 50 MHz, and all DAC registers can be updated simultaneously by taking LDAC low. Supplied in a 64-lead LQFP measuring 10 mm x 10 mm, the AD5373BSTZ is suited to ATE and industrial boards assembled on leaded processes.

The AD5373 family covers several resolution, reference and package options. Because AD5373 devices are pin and software compatible within each package group, a design can move between AD5373 variants without rewriting firmware.

• 32 voltage output channels, 14-bit resolution
• Guaranteed monotonic to 14 bits
• Nominal output span -4 V to +8 V, up to 4 x VREF
• VSS -16.5 V to -4.5 V, VDD 9 V to 16.5 V
• SPI, QSPI, MICROWIRE and DSP compatible interface up to 50 MHz
• Per-channel programmable gain and offset adjust
• Simultaneous update of all DAC outputs
• 64-lead LQFP, 10 mm x 10 mm

• Automatic test equipment level setting
• Industrial process control
• Multi-channel programmable sources
• Instrumentation calibration
• Automation analogue output cards
• Drop-in upgrades across the AD5373 series

The AD5373BSTZ brings 32 calibrated 14-bit outputs to a 10 mm LQFP, giving designers a leaded alternative to the LFCSP version with identical control and calibration features.
