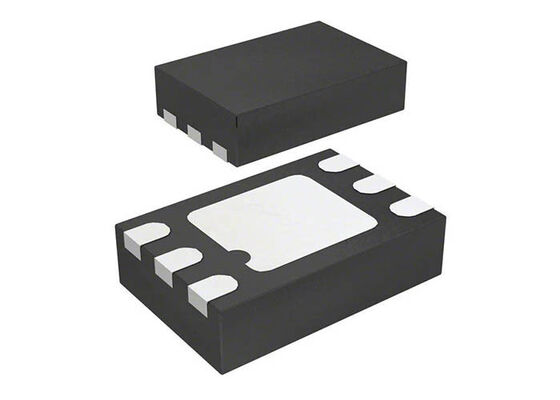

AD5601BCPZ 8-Bit Voltage Output DAC Integrated Circuit Chip 6-Lead LFCSP

The AD5601BCPZ is an 8-bit, buffered voltage output digital-to-analog converter that operates from a single 2.7 V to 5.5 V supply and draws less than 100 uA. The on-chip output amplifier swings rail to rail with a typical slew rate of 0.5 V/us, so the device can drive level-setting nodes directly.

The reference is derived from the power supply, which removes external reference components, and the B version is specified at plus or minus 0.5 LSB integral nonlinearity. A power-on reset circuit brings the output to 0 V with brownout detection, and a power-down mode reduces current to typically 0.2 uA at 3 V.

Data is written over a low power serial interface with Schmitt-triggered inputs that supports clock speeds up to 30 MHz and powers up only during a write cycle. Supplied in a 6-lead LFCSP (also available in a 6-lead SC70), the AD5601BCPZ suits bias and control voltage generation in space-constrained, power-sensitive products.

The AD5601 family covers several resolution, reference and package options. Because AD5601 devices are pin and software compatible within each package group, a design can move between AD5601 variants without rewriting firmware.

• 8-bit voltage output DAC with rail-to-rail buffered output
• Supply range 2.7 V to 5.5 V
• Micropower: 100 uA maximum at 5 V
• Power-down typically 0.2 uA at 3 V
• Reference derived from the power supply
• INL plus or minus 0.5 LSB (B version)
• Serial interface up to 30 MHz with Schmitt-triggered inputs
• Power-on reset to 0 V with brownout detection
• 6-lead LFCSP and 6-lead SC70 packages

• Bias and control voltage generation
• Level setting in portable instruments
• Programmable threshold references
• Sensor offset adjustment
• Space-constrained consumer and industrial boards
• Drop-in upgrades across the AD5601 series

With the reference taken from the supply and a 0.2 uA power-down mode, the AD5601BCPZ adds an 8-bit control voltage to a design with almost no power or board area cost.
