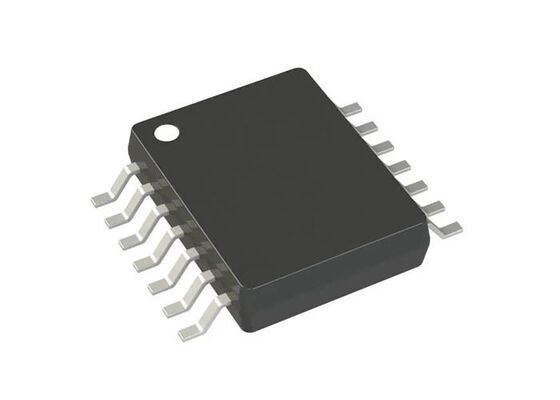

AD5045BRUZ Dual 14-Bit Voltage Output DAC Integrated Circuit Chip 14-Lead TSSOP

The AD5045BRUZ is a dual, 14-bit, buffered voltage output digital-to-analog converter that operates from a single 4.5 V to 5.5 V supply. Each channel has its own voltage reference pin, so the two outputs can use different spans for maximum flexibility, and relative accuracy is specified at plus or minus 1 LSB INL.

The device includes a reference buffer on chip and a power-on reset circuit that sets the outputs to zero scale or midscale until a valid write occurs. Power-down reduces consumption to typically 400 nA at 5 V, with per-channel power-down available, and the part can be returned to normal operation over the serial interface.

A three-wire, low power Schmitt-trigger serial interface operates at clock rates up to 50 MHz and is compatible with SPI, QSPI, MICROWIRE and DSP standards. Supplied in a 14-lead TSSOP, the AD5045BRUZ is intended for precision dual-channel control in instrumentation and industrial equipment.

The AD5045 family covers several resolution, reference and package options. Because AD5045 devices are pin and software compatible within each package group, a design can move between AD5045 variants without rewriting firmware.

• Dual 14-bit voltage output DAC, plus or minus 1 LSB INL
• Individual voltage reference pins for each channel
• Supply range 4.5 V to 5.5 V
• On-chip reference buffer and output amplifiers
• Per-channel power-down, typically 400 nA at 5 V
• Power-on reset to zero scale or midscale
• 3-wire SPI/QSPI/MICROWIRE/DSP interface up to 50 MHz
• 14-lead TSSOP package

• Precision dual-channel set-point control
• Industrial instrumentation
• Programmable voltage sources
• Calibration and gain/offset trim
• Process control analogue output
• Drop-in upgrades across the AD5045 series

Independent reference pins and plus or minus 1 LSB linearity let the AD5045BRUZ drive two different output spans accurately from a single 5 V rail.
