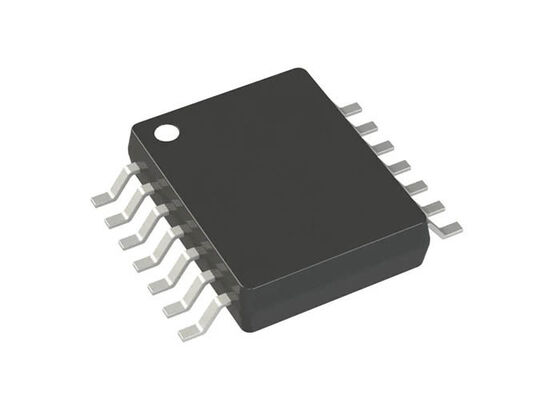

AD5065ARUZ Dual 16-Bit Voltage Output DAC Integrated Circuit Chip 14-Lead TSSOP

The AD5065ARUZ is a dual, 16-bit, buffered voltage output digital-to-analog converter operating from a 4.5 V to 5.5 V supply. It offers 16-bit relative accuracy of plus or minus 1 LSB with individual reference pins for the two channels, allowing separate output spans in the same package.

An on-chip reference buffer and rail-to-rail output amplifiers complete the signal chain, while a power-on reset circuit holds the outputs at zero scale or midscale until the first valid write. Per-channel power-down lowers consumption to typically 400 nA at 5 V, and the outputs can be re-enabled over the serial interface.

The AD5065ARUZ uses a versatile three-wire serial interface with Schmitt-triggered inputs that runs at up to 50 MHz and is compatible with SPI, QSPI, MICROWIRE and DSP ports. Housed in a 14-lead TSSOP, it targets high resolution dual-channel control in test, instrumentation and industrial systems.

The AD5065 family covers several resolution, reference and package options. Because AD5065 devices are pin and software compatible within each package group, a design can move between AD5065 variants without rewriting firmware.

• Dual 16-bit voltage output DAC, plus or minus 1 LSB INL
• Individual voltage reference pins for each channel
• Supply range 4.5 V to 5.5 V
• On-chip reference buffer and rail-to-rail output amplifiers
• Per-channel power-down, typically 400 nA at 5 V
• Power-on reset to zero scale or midscale
• 3-wire SPI/QSPI/MICROWIRE/DSP interface up to 50 MHz
• 14-lead TSSOP package

• High resolution dual set-point control
• Automatic test equipment
• Precision instrumentation
• Programmable references and bias
• Industrial analogue output modules
• Drop-in upgrades across the AD5065 series

Sixteen bits of resolution on two independently referenced channels make the AD5065ARUZ suitable for fine trim and calibration tasks in a 14-lead TSSOP.
