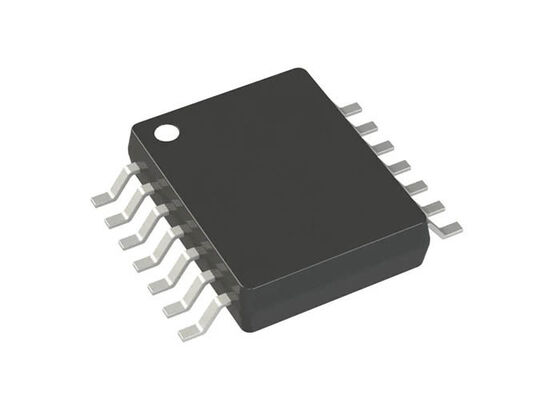

AD5064ARUZ-1 Quad 16-Bit Voltage Output DAC Integrated Circuit Chip 14-Lead TSSOP

The AD5064ARUZ-1 is a quad, 16-bit, buffered voltage output digital-to-analog converter operating from a 4.5 V to 5.5 V supply. The -1 version integrates the reference, so four accurate 16-bit outputs are available without an external reference device, and relative accuracy is plus or minus 1 LSB INL.

Each channel has its own output amplifier with rail-to-rail swing, and three power-down functions plus per-channel power-down reduce consumption when outputs are not needed. A power-on reset circuit sets the outputs to zero scale until a valid write is received, preventing unwanted transients at startup.

A high speed serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards supports clock rates up to 50 MHz, and all four DAC registers can be updated together. Supplied in a 14-lead TSSOP, the AD5064ARUZ-1 suits compact multi-channel control in instrumentation and industrial systems.

The AD5064 family covers several resolution, reference and package options. Because AD5064 devices are pin and software compatible within each package group, a design can move between AD5064 variants without rewriting firmware.

• Quad 16-bit voltage output DAC, plus or minus 1 LSB INL
• On-chip reference in the -1 version, 14-lead TSSOP
• Supply range 4.5 V to 5.5 V
• Rail-to-rail buffered outputs on all four channels
• Three power-down functions and per-channel power-down
• Power-on reset to zero scale
• SPI/QSPI/MICROWIRE/DSP interface up to 50 MHz
• Simultaneous update of all DAC outputs

• Multi-channel precision control
• Instrumentation and calibration
• Programmable voltage sources
• Industrial automation
• Optical and communication module bias
• Drop-in upgrades across the AD5064 series

Four 16-bit channels plus an integrated reference in a 14-lead TSSOP give the AD5064ARUZ-1 a complete analogue output block with minimal external circuitry.
