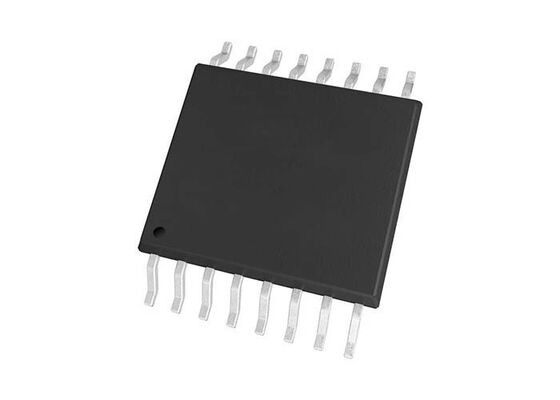

AD5064BRUZ Quad 16-Bit Voltage Output DAC Integrated Circuit Chip 16-Lead TSSOP

The AD5064BRUZ is a quad, 16-bit, buffered voltage output digital-to-analog converter that runs from a 4.5 V to 5.5 V supply. In this version the reference is supplied externally, giving the designer freedom to choose the output span, while relative accuracy remains plus or minus 1 LSB INL.

All four outputs include rail-to-rail amplifiers capable of driving loads directly. Three power-down functions and per-channel power-down cut supply current when channels are idle, and a power-on reset circuit holds the outputs at zero scale until a valid write occurs.

The device is controlled by a high speed serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards at up to 50 MHz, with simultaneous update of all DAC registers. Packaged in a 16-lead TSSOP, the AD5064BRUZ suits multi-channel control where a common external reference is already available.

The AD5064 family covers several resolution, reference and package options. Because AD5064 devices are pin and software compatible within each package group, a design can move between AD5064 variants without rewriting firmware.

• Quad 16-bit voltage output DAC, plus or minus 1 LSB INL
• External reference input, 16-lead TSSOP
• Supply range 4.5 V to 5.5 V
• Rail-to-rail buffered outputs on all four channels
• Three power-down functions and per-channel power-down
• Power-on reset to zero scale
• SPI/QSPI/MICROWIRE/DSP interface up to 50 MHz
• Simultaneous update of all DAC outputs

• Multi-channel programmable sources
• Industrial control and automation
• Instrumentation and test systems
• Gain and offset calibration
• Communication module bias control
• Drop-in upgrades across the AD5064 series

With an external reference and four buffered 16-bit outputs, the AD5064BRUZ lets a system share one precision reference across multiple control channels.
