AD5444YRMZ 12-Bit Multiplying DAC Integrated Circuit Chip 10-Lead MSOP

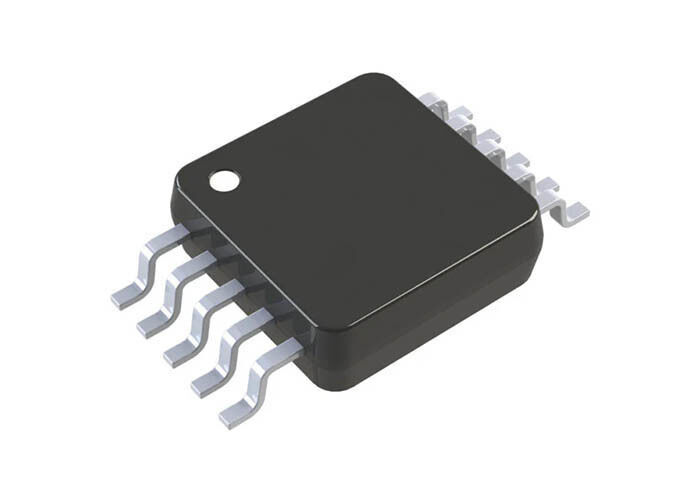

Large Image : AD5444YRMZ 12-Bit Multiplying DAC Integrated Circuit Chip 10-Lead MSOP

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AD5444YRMZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Standard package
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

AD5444YRMZ 12-Bit Multiplying DAC Integrated Circuit Chip 10-Lead MSOP

Description

Highlight:

AD5444YRMZ

AD5444 DAC

12-Bit Multiplying DAC IC

AD5444YRMZ 12-Bit High Bandwidth Multiplying DAC with Serial Interface, 10-Lead MSOP

The AD5444YRMZ is a 12-bit, current output, multiplying digital-to-analog converter designed for signal processing applications where the reference input is a varying waveform. With a reference input range of plus or minus 10 V, the device performs four-quadrant multiplication of the digital code and the analogue input.

The AD5444YRMZ operates from a single 2.5 V to 5.5 V supply and offers integral nonlinearity of plus or minus 0.5 LSB at 12 bits. Typical current consumption is only 0.4 uA, and the part is specified over the extended temperature range of -40 degrees C to +125 degrees C.

A double-buffered, three-wire serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards supports clock rates up to 50 MHz. Supplied in a 10-lead MSOP, the AD5444YRMZ is used in programmable gain and attenuation, waveform generation and modulation circuits.

The AD5444 family covers several resolution, reference and package options. Because AD5444 devices are pin and software compatible within each package group, a design can move between AD5444 variants without rewriting firmware.

Key Features

12-bit resolution, current output multiplying DAC
INL plus or minus 0.5 LSB at 12 bits
2.5 V to 5.5 V single supply operation
Reference input range plus or minus 10 V
Four-quadrant multiplication
50 MHz serial interface, SPI/QSPI/MICROWIRE/DSP compatible
Typical current consumption 0.4 uA
Extended temperature range -40 degrees C to +125 degrees C
10-lead MSOP package

Specifications

Series	AD5444
Part Number	AD5444YRMZ
Package / Case	10-Lead MSOP, tape & reel
Resolution	12 bit
Output Type	Current output, multiplying
Interface	Serial, up to 50 MHz
Reference Input	plus or minus 10 V
INL	plus or minus 0.5 LSB
Supply Voltage	2.5 V to 5.5 V
Supply Current	0.4 uA typical
Operating Temperature	-40 degrees C to +125 degrees C
RoHS	RoHS compliant, lead free

Typical Applications

Programmable gain and attenuation
Programmable filters and oscillators
Waveform generation and modulation
Signal level control loops
Industrial and communication instrumentation
Drop-in upgrades across the AD5444 series

Because the AD5444YRMZ multiplies the reference instead of attenuating a fixed one, digital gain control and modulation can be implemented in a single 10-lead package.

MJD Advantage

15+ years of electronic components experience
Secure ordering process
Excellent customer feedback
Guaranteed delivery dates
100% low price guarantee
Global export to 108 countries with 99.9% customer satisfaction rate

Company Profile

Shenzhen Mingjiada Electronics Co., Ltd. is an authorized independent distributor of electronic components from world-renowned manufacturers. Founded in Shenzhen in 1996, Mingjiada has established branches in Hong Kong, Japan, Russia, and Taiwan.

Certified under ISO9001:2014 for quality management systems and ISO14001:2014 for environmental management systems. With an experienced team in sales, R&D and management, we specialize in distributing products from more than 500 well-known suppliers.

Adhering to the principle of "maximizing benefits for customers," we offer comprehensive product ranges and provide high-quality, responsive service through professional logistics and customer service teams.

Quality Assurance

Frequently Asked Questions

Are your AD5444YRMZ products original?

Yes. Every part we ship is new original stock sourced through authorized channels, with full traceability.

Which package does the AD5444YRMZ use?

It is supplied in a 10-lead MSOP, on tape and reel for automated assembly.

Do you supply the AD5444YRMZ in tape and reel?

Yes. Standard orders ship in manufacturer tape and reel packaging suitable for automated placement; cut tape and samples are also available on request.

How do you ship my order? Is it safe?

We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also use your preferred forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.

What is the lead time for AD5444YRMZ orders?

Stock parts ship within 5 working days; for non-stock quantities we confirm lead time against your order volume.
