AD5645RBRUZ Quad 14-Bit Voltage Output DAC Integrated Circuit Chip 14-Lead TSSOP

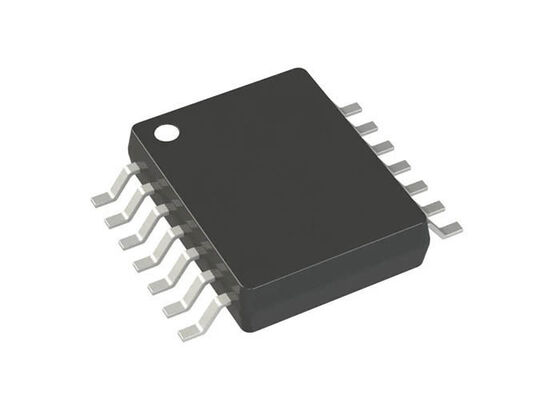

Large Image : AD5645RBRUZ Quad 14-Bit Voltage Output DAC Integrated Circuit Chip 14-Lead TSSOP

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AD5645RBRUZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Standard package
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

AD5645RBRUZ Quad 14-Bit Voltage Output DAC Integrated Circuit Chip 14-Lead TSSOP

Description

Highlight:

AD5645RBRUZ

AD5645R DAC

Quad 14-Bit Voltage Output DAC IC

AD5645RBRUZ Quad 14-Bit Voltage Output DAC with On-Chip Reference, 14-Lead TSSOP

The AD5645RBRUZ is a quad, 14-bit, buffered voltage output digital-to-analog converter with an on-chip 2.5 V reference specified at 5 ppm/degrees C. It operates from a 2.7 V to 5.5 V supply and provides four rail-to-rail outputs in a 14-lead TSSOP.

A power-on reset circuit sets the outputs to 0 V or midscale according to the POR pin and holds them until a valid write is received. Each channel can be individually powered down to save current, and the precision output amplifiers drive loads directly with rail-to-rail swing.

The I2C-compatible serial interface supports standard 100 kHz, fast 400 kHz and high speed 3.4 MHz modes. With the tighter 5 ppm/degrees C reference of the TSSOP version, the AD5645RBRUZ suits multi-channel instrumentation and industrial control where reference drift must stay low over temperature.

The AD5645 family covers several resolution, reference and package options. Because AD5645 devices are pin and software compatible within each package group, a design can move between AD5645 variants without rewriting firmware.

Key Features

Quad 14-bit voltage output DAC, rail-to-rail buffered outputs
On-chip 2.5 V reference, 5 ppm/degrees C (TSSOP version)
Supply range 2.7 V to 5.5 V
I2C-compatible interface: 100 kHz, 400 kHz and 3.4 MHz
Per-channel power-down
Power-on reset to 0 V or midscale
14-lead TSSOP package
Low drift reference for precision control

Specifications

Series	AD5645
Part Number	AD5645RBRUZ
Package / Case	14-Lead TSSOP, tape & reel
Resolution	14 bit
DAC Channels	4 buffered voltage outputs
Interface	I2C-compatible, 100 kHz / 400 kHz / 3.4 MHz
Reference	Internal 2.5 V, 5 ppm/degrees C
Output Swing	Rail to rail
Supply Voltage	2.7 V to 5.5 V
Power-Down	Per channel
RoHS	RoHS compliant, lead free

Typical Applications

Precision multi-channel control
Industrial instrumentation
Programmable voltage and current sources
Calibration and trim
Automation analogue output modules
Drop-in upgrades across the AD5645 series

The 5 ppm/degrees C reference of the AD5645RBRUZ keeps four 14-bit channels stable over temperature while the I2C bus keeps wiring simple.

MJD Advantage

15+ years of electronic components experience
Secure ordering process
Excellent customer feedback
Guaranteed delivery dates
100% low price guarantee
Global export to 108 countries with 99.9% customer satisfaction rate

Company Profile

Shenzhen Mingjiada Electronics Co., Ltd. is an authorized independent distributor of electronic components from world-renowned manufacturers. Founded in Shenzhen in 1996, Mingjiada has established branches in Hong Kong, Japan, Russia, and Taiwan.

Certified under ISO9001:2014 for quality management systems and ISO14001:2014 for environmental management systems. With an experienced team in sales, R&D and management, we specialize in distributing products from more than 500 well-known suppliers.

Adhering to the principle of "maximizing benefits for customers," we offer comprehensive product ranges and provide high-quality, responsive service through professional logistics and customer service teams.

Quality Assurance

Frequently Asked Questions

Are your AD5645RBRUZ products original?

Yes. Every part we ship is new original stock sourced through authorized channels, with full traceability.

Which package does the AD5645RBRUZ use?

It is supplied in a 14-lead TSSOP, on tape and reel for automated assembly.

Do you supply the AD5645RBRUZ in tape and reel?

Yes. Standard orders ship in manufacturer tape and reel packaging suitable for automated placement; cut tape and samples are also available on request.

How do you ship my order? Is it safe?

We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also use your preferred forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.

What is the lead time for AD5645RBRUZ orders?

Stock parts ship within 5 working days; for non-stock quantities we confirm lead time against your order volume.
