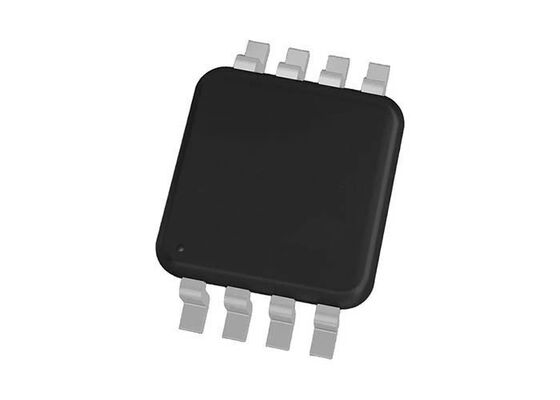

AD5301BRMZ 8-Bit Voltage Output DAC Integrated Circuit Chip 8-Lead MSOP

Large Image : AD5301BRMZ 8-Bit Voltage Output DAC Integrated Circuit Chip 8-Lead MSOP

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AD5301BRMZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Standard package
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

AD5301BRMZ 8-Bit Voltage Output DAC Integrated Circuit Chip 8-Lead MSOP

Description

Highlight:

AD5301BRMZ

AD5301 DAC

8-Bit Voltage Output DAC IC

AD5301BRMZ 2.5 V to 5.5 V, 120 uA, 2-Wire Interface 8-Bit Voltage Output DAC

The AD5301BRMZ is a single-channel, 8-bit, buffered voltage output digital-to-analog converter operating from a 2.5 V to 5.5 V supply. The output amplifier swings rail to rail, and the reference is derived from the power supply, so no external reference device is required.

Supply current is only 120 uA at 3 V, making the AD5301BRMZ suitable for battery-powered and space-constrained equipment. A two-wire I2C-compatible serial interface runs at clock rates up to 400 kHz, and multiple devices can share the same bus for multi-node control.

The part is available in a 6-lead SOT-23 and an 8-lead MSOP, with a power-on reset circuit that holds the output at 0 V until a valid write occurs. The AD5301BRMZ fits programmable voltage and current sources, programmable attenuators, threshold generation and compact trim circuits.

The AD5301 family covers several resolution, reference and package options. Because AD5301 devices are pin and software compatible within each package group, a design can move between AD5301 variants without rewriting firmware.

Key Features

Single 8-bit voltage output DAC with buffered rail-to-rail output
Supply range 2.5 V to 5.5 V
Micropower operation: 120 uA at 3 V
Two-wire I2C-compatible interface up to 400 kHz
Multiple devices can share the same bus
Reference derived from the power supply
Power-on reset to 0 V
6-lead SOT-23 and 8-lead MSOP packages

Specifications

Series	AD5301
Part Number	AD5301BRMZ
Package / Case	8-Lead MSOP, tape & reel
Resolution	8 bit
DAC Channels	1 buffered voltage output
Interface	Two-wire, I2C-compatible, up to 400 kHz
Reference	Derived from supply
Supply Voltage	2.5 V to 5.5 V
Supply Current	120 uA at 3 V
Power-On Reset	Output to 0 V
RoHS	RoHS compliant, lead free

Typical Applications

Programmable voltage and current sources
Programmable attenuators
Threshold and bias generation
Portable and battery-powered instruments
Compact trim and calibration circuits
Drop-in upgrades across the AD5301 series

A single 8-bit channel, a two-wire bus and 120 uA of supply current make the AD5301BRMZ an economical choice for small trim and level-setting functions.

MJD Advantage

15+ years of electronic components experience
Secure ordering process
Excellent customer feedback
Guaranteed delivery dates
100% low price guarantee
Global export to 108 countries with 99.9% customer satisfaction rate

Company Profile

Shenzhen Mingjiada Electronics Co., Ltd. is an authorized independent distributor of electronic components from world-renowned manufacturers. Founded in Shenzhen in 1996, Mingjiada has established branches in Hong Kong, Japan, Russia, and Taiwan.

Certified under ISO9001:2014 for quality management systems and ISO14001:2014 for environmental management systems. With an experienced team in sales, R&D and management, we specialize in distributing products from more than 500 well-known suppliers.

Adhering to the principle of "maximizing benefits for customers," we offer comprehensive product ranges and provide high-quality, responsive service through professional logistics and customer service teams.

Quality Assurance

Frequently Asked Questions

Are your AD5301BRMZ products original?

Yes. Every part we ship is new original stock sourced through authorized channels, with full traceability.

Which package does the AD5301BRMZ use?

It is supplied in an 8-lead MSOP, on tape and reel; a 6-lead SOT-23 package is also available.

Do you supply the AD5301BRMZ in tape and reel?

Yes. Standard orders ship in manufacturer tape and reel packaging suitable for automated placement; cut tape and samples are also available on request.

How do you ship my order? Is it safe?

We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also use your preferred forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.

What is the lead time for AD5301BRMZ orders?

Stock parts ship within 5 working days; for non-stock quantities we confirm lead time against your order volume.
