AD5424YRUZ 8-Bit High Bandwidth Multiplying DAC Integrated Circuit Chip 16-Lead TSSOP

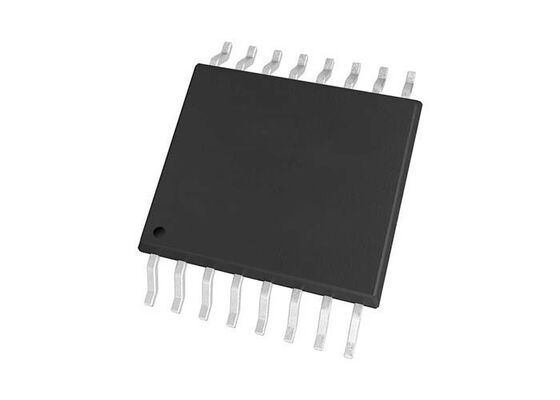

Large Image : AD5424YRUZ 8-Bit High Bandwidth Multiplying DAC Integrated Circuit Chip 16-Lead TSSOP

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AD5424YRUZ

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Standard package
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

AD5424YRUZ 8-Bit High Bandwidth Multiplying DAC Integrated Circuit Chip 16-Lead TSSOP

Description

Highlight:

AD5424YRUZ

AD5424 DAC

8-Bit High Bandwidth Multiplying DAC IC

AD5424YRUZ 8-Bit High Bandwidth Multiplying DAC with Parallel Interface, 16-Lead TSSOP

The AD5424YRUZ is an 8-bit, current output, multiplying digital-to-analog converter for applications in which the reference input carries the signal to be scaled. A plus or minus 10 V reference range provides four-quadrant multiplication of the digital code and the analogue input.

Operating from a 2.5 V to 5.5 V supply, the AD5424YRUZ achieves a large signal multiplying bandwidth of up to 10 MHz with integral nonlinearity of plus or minus 1 LSB. The parallel interface accepts a 17 ns write cycle and allows the DAC register contents to be read back for verification.

The internal register and latches are cleared at power-up, forcing the DAC outputs to zero scale until the first write. Supplied in a 16-lead TSSOP, the AD5424YRUZ suits programmable gain and attenuation, waveform generation, modulation and portable battery-powered equipment.

Because AD5424 devices are pin and software compatible within each package group, a design can move between AD5424 variants without rewriting firmware.

Key Features

8-bit resolution, current output multiplying DAC
2.5 V to 5.5 V single supply operation
10 MHz large signal multiplying bandwidth
Reference input range plus or minus 10 V
Four-quadrant multiplication
Fast parallel interface with 17 ns write cycle
Data readback of the DAC register
INL plus or minus 1 LSB
16-lead TSSOP package

Specifications

Series	AD5424
Part Number	AD5424YRUZ
Package / Case	16-Lead TSSOP, tape & reel
Resolution	8 bit
Output Type	Current output, multiplying
Interface	Parallel, 17 ns write cycle, data readback
Reference Input	plus or minus 10 V
Multiplying Bandwidth	10 MHz large signal
INL	plus or minus 1 LSB
Supply Voltage	2.5 V to 5.5 V
RoHS	RoHS compliant, lead free

Typical Applications

Programmable gain and attenuation
Waveform generation and modulation
Signal level control loops
Portable battery-powered instrumentation
Industrial and communication equipment
Drop-in upgrades across the AD5424 series

The TSSOP version of the AD5424 keeps the 8-bit multiplying core and 10 MHz bandwidth, giving designers a leaded package option for high speed gain control.

MJD Advantage

15+ years of electronic components experience
Secure ordering process
Excellent customer feedback
Guaranteed delivery dates
100% low price guarantee
Global export to 108 countries with 99.9% customer satisfaction rate

Company Profile

Shenzhen Mingjiada Electronics Co., Ltd. is an authorized independent distributor of electronic components from world-renowned manufacturers. Founded in Shenzhen in 1996, Mingjiada has established branches in Hong Kong, Japan, Russia, and Taiwan.

Certified under ISO9001:2014 for quality management systems and ISO14001:2014 for environmental management systems. With an experienced team in sales, R&D and management, we specialize in distributing products from more than 500 well-known suppliers.

Adhering to the principle of "maximizing benefits for customers," we offer comprehensive product ranges and provide high-quality, responsive service through professional logistics and customer service teams.

Quality Assurance

Frequently Asked Questions

Are your AD5424YRUZ products original?

Yes. Every part we ship is new original stock sourced through authorized channels, with full traceability.

Which package does the AD5424YRUZ use?

It is supplied in a 16-lead TSSOP, on tape and reel for automated assembly.

Do you supply the AD5424YRUZ in tape and reel?

Yes. Standard orders ship in manufacturer tape and reel packaging suitable for automated placement; cut tape and samples are also available on request.

How do you ship my order? Is it safe?

We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also use your preferred forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.

What is the lead time for AD5424YRUZ orders?

Stock parts ship within 5 working days; for non-stock quantities we confirm lead time against your order volume.
