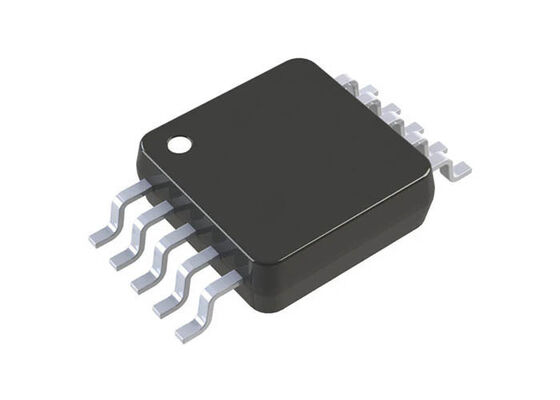

AD5627BRMZ Dual 12-Bit Voltage Output DAC Integrated Circuit Chip 10-Lead MSOP

The AD5627BRMZ is a dual, 12-bit, buffered voltage output digital-to-analog converter that operates from a 2.7 V to 5.5 V supply. Each channel has a rail-to-rail output amplifier, and an external reference pin sets the full-scale output for both DACs.

A power-on reset circuit sets the outputs to zero scale at power-up and holds them until a valid write is received, while per-channel power-down reduces supply current when a channel is idle. The I2C-compatible interface supports standard 100 kHz, fast 400 kHz and high speed 3.4 MHz modes.

Supplied in a 10-lead MSOP, the AD5627BRMZ is intended for programmable voltage and current sources, programmable attenuators, offset trimming and compact dual-channel control loops where a leaded package is preferred.

Because AD5627 devices are pin and software compatible within each package group, a design can move between AD5627 variants without rewriting firmware.

• Dual 12-bit voltage output DAC with rail-to-rail buffered outputs
• Supply range 2.7 V to 5.5 V
• External reference input sets the output span
• I2C-compatible interface: 100 kHz, 400 kHz and 3.4 MHz
• Power-on reset to zero scale
• Per-channel power-down
• 10-lead MSOP package
• Low power for portable instrumentation

• Programmable voltage and current sources
• Programmable attenuators
• Offset and gain trimming
• Portable battery-powered instruments
• Compact dual-channel control
• Drop-in upgrades across the AD5627 series

The MSOP version of the AD5627 provides two 12-bit channels on a two-wire bus, fitting designs that prefer a leaded 10-lead footprint.
