TPS74625PQWDRBRQ1 Integrated Circuit Chip LDO Regulator with 1A Output Ultra-Low Dropout and Power-Good Functionality

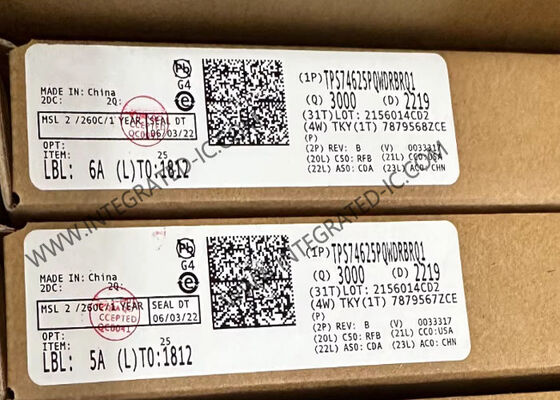

Large Image : TPS74625PQWDRBRQ1 Integrated Circuit Chip LDO Regulator with 1A Output Ultra-Low Dropout and Power-Good Functionality

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS74625PQWDRBRQ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VSON-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS74625PQWDRBRQ1 Integrated Circuit Chip LDO Regulator with 1A Output Ultra-Low Dropout and Power-Good Functionality

Description

Part Number:	TPS74625PQWDRBRQ1	Quiescent Current:	25 UA
Number Of Outputs:	1 Output	PSRR / Ripple Rejection - Typ:	38 DB
Dropout Voltage - Max:	310 MV	Load Regulation:	0.03 V/A
Highlight:	1A Output LDO Regulator , Ultra-Low Dropout Voltage Regulator , Power-Good Functionality Integrated Circuit Chip

TPS74625PQWDRBRQ1 Integrated Circuit Chip Low-Dropout Voltage Regulator VSON8 LDO Regulator

The TPS74625PQWDRBRQ1 is a 1A ultra-low-dropout regulator (LDO) with power-good functionality. This device features low quiescent current consumption and delivers exceptional line and load transient performance.

Product Overview

The TPS74625PQWDRBRQ1 is a versatile voltage regulator supporting an input voltage range from 1.5V to 6.0V and an externally adjustable output range of 0.55V to 5.5V. The device also offers fixed output voltage options for powering common voltage rails, making it ideal for post-regulation applications.

Technical Specifications

Parameter	Value
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.5V
Voltage Dropout (Max)	0.31V @ 1A
Current - Output	1A
Current - Quiescent (Iq)	36 µA
PSRR	53dB ~ 30dB (1kHz ~ 1MHz)
Control Features	Enable, Power Good
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-SON (3x3)

Key Features

Device operating junction temperature range: -40°C to +150°C

Input voltage range: 1.5V to 6.0V

Output voltage range: Fixed option 0.65V to 5.0V / Adjustable option 0.55V to 5.5V

High PSRR: 38dB at 100kHz

Output accuracy: ±0.85% typical, ±1.5% maximum

Power-good output options: Open-drain or push-pull

Ultra-low dropout: 265mV (max) at 1A (3.3VOUT)

Stable with a 1µF or larger capacitor

Low IQ: 25μA (typical)

Active output discharge

Low thermal resistance: DRB (8-pin VSON), RθJA = 55.5°C/W

Applications

Automotive head units
Front and rear cameras
Automotive cluster displays
Telematics control units
Medium and short range radar systems
