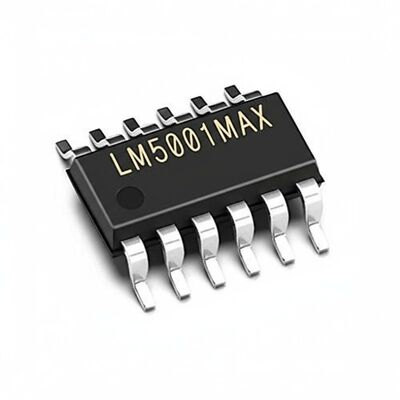

LM5001MAX Integrated Circuit Chip 1A High-Voltage Switch-Mode Regulator IC with 50kHz to 1.5MHz Switching Frequency

Large Image : LM5001MAX Integrated Circuit Chip 1A High-Voltage Switch-Mode Regulator IC with 50kHz to 1.5MHz Switching Frequency

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LM5001MAX

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LM5001MAX Integrated Circuit Chip 1A High-Voltage Switch-Mode Regulator IC with 50kHz to 1.5MHz Switching Frequency

Description

Part Number:	LM5001MAX	Topology:	Boost, Flyback
Output Current:	1 A	Number Of Outputs:	1 Output
Output Voltage:	1.26 V To 75 V	Switching Frequency:	50 KHz To 1.5 MHz
Highlight:	1A Output Current Integrated Circuit Chip , 75V High-Voltage Switch-Mode Regulator IC , 50kHz to 1.5MHz Switching Frequency LM5001MAX

LM5001MAX Integrated Circuit Chip

1A High-Voltage Switch-Mode Regulator IC in SOIC8 Package

Product Overview

The LM5001MAX high-voltage switch-mode regulator integrates all necessary functions for implementing efficient Boost, Flyback, SEPIC, and Forward converters with minimal external components. This versatile regulator features an integrated 75-V N-Channel MOSFET with 1-A peak current limit and current mode control for superior performance.

Technical Specifications

Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Boost, Flyback, Forward Converter, SEPIC
Output Type	Adjustable
Number of Outputs	1
Voltage Input Range	3.1V - 75V
Voltage Output Range	3.1V - 76V (Switch)
Current Output	800mA (Switch)
Switching Frequency	50kHz - 1.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C to 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Key Features

AEC-Q100 Qualified (TJ = -40°C to 125°C)
Integrated 75-V N-Channel MOSFET
Ultra-Wide Input Voltage Range from 3.1V to 75V
Integrated High Voltage Bias Regulator
Adjustable Output Voltage with 1.5% Accuracy
Current Mode Control with Selectable Compensation
Wide Bandwidth Error Amplifier
Integrated Current Sensing and Limiting
Integrated Slope Compensation
85% Maximum Duty Cycle Limit
Single Resistor Oscillator Programming
Oscillator Synchronization Capability
Enable / Undervoltage Lockout (UVLO) Pin
Thermal Shutdown Protection

Applications

DC-DC Power Supplies for Industrial, Communications, and Automotive Applications; Boost, Flyback, SEPIC and Forward Converter Topologies
