INA146UA High-Voltage Precision Programmable Gain Difference Amplifier with Wide Supply Range

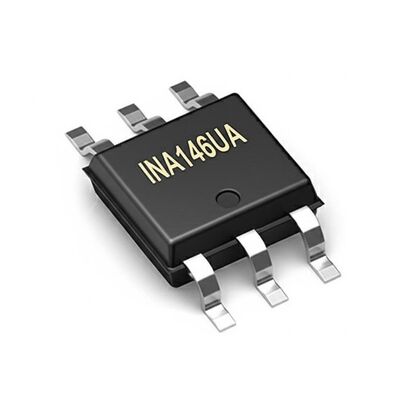

Large Image : INA146UA High-Voltage Precision Programmable Gain Difference Amplifier with Wide Supply Range

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	INA146UA

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-8
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

INA146UA High-Voltage Precision Programmable Gain Difference Amplifier with Wide Supply Range

Description

Part Number:	INA146UA	Number Of Channels::	1 Channel
GBP - Gain Bandwidth Product::	550 KHz	SR - Slew Rate::	0.45 V/us
CMRR - Common Mode Rejection Ratio::	70 DB	Output Current Per Channel::	15 MA
Highlight:	High-Voltage Difference Amplifier , Precision Programmable Gain Amplifier , Wide Supply Range Integrated Circuit Chip

INA146UA Integrated Circuit Chip High-Voltage Programmable Gain Difference Amplifier

The INA146UA is a precision difference amplifier designed to accurately attenuate high differential voltages and reject high common-mode voltages for compatibility with common signal processing voltage levels. Its high-voltage capability provides inherent input protection, while the input common-mode range extends beyond both supply rails, making it an excellent choice for both single and dual supply applications.

Technical Specifications

Amplifier Type	Differential
Number of Circuits	1
Slew Rate	0.45V/µs
-3db Bandwidth	550 kHz
Current - Input Bias	50 nA
Voltage - Input Offset	1 mV
Current - Supply	570µA
Current - Output / Channel	15 mA
Voltage - Supply Span (Min)	4.5 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-40°C ~ 85°C

Key Features

High common-mode voltage: 40V at VS = 5V, ±100V at VS = ±15V
Differential gain = 0.1V/V TO 100V/V (set with external resistors)
Low quiescent current: 570µA
Wide supply range: Single Supply 4.5V to 36V, Dual Supplies ±2.25V to ±18V
Low gain error: 0.025%
High common-mode rejection: 80dB

Applications

Battery cell formation & test equipment
AC drive control module
HVAC controller
Professional audio amplifier (rack mount)
Programmable DC power source
Data acquisition (DAQ)
