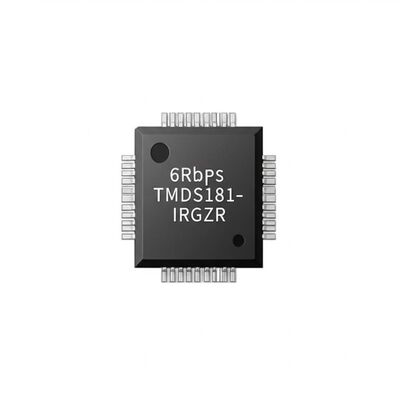

TMDS181IRGZR Integrated Circuit Chip 6Gbps High-Definition Multimedia Interface Retimer
The TMDS181IRGZR is a digital video interface (DVI) or high-definition multimedia interface (HDMI™) retimer. This advanced IC supports four TMDS channels, audio return channel (SPDIF_IN/ARC_OUT), and digital display control (DDC) interfaces.
Technical Specifications
| Applications |
Retimer |
| Voltage - Supply |
1.2V, 3.3V |
| Package / Case |
48-VFQFN Exposed Pad |
| Supplier Device Package |
48-VQFN (7x7) |
Key Features
- HDMI™ Input Port to Output Port With CDR Supporting Up to 6 Gbps Data Rates
- Compatible With HDMI™ Electrical Parameters Up to 6 Gbps in Retimer Mode
- Support 4k2k60p and Up to WUXGA 16-Bit Color Depth or 1080p With Higher Refresh Rates
- Retimes Input Stream to Compensate for Random Jitter
- Adaptive Receiver Equalizer or Programmable Fixed Equalizer
- I2C and Pin Strap Programmable
- Inter-Pair Skew Compensation of 5+ Bits
- Single-Ended Mode ARC Support
- Link Debug Tools Including Eye Diagram After the RX Equalizer
- 48-Pin 7-mm × 7-mm 0.5-mm Pitch VQFN Package
- Extended Commercial Temperature Support 0°C to 85°C (TMDS181)
- Industrial Temperature Support: -40°C to 85°C (TMDS181I)
Applications
Digital TV, Digital Projector, Audio/Video Equipment, Blu-ray™ DVD, Monitors, Desktops/All-in-Ones, Active Cables
