IM69D130V01 Digital MEMS Microphone Sensor IC with 69 dBA SNR and 130dBSPL High Output Linearity Using Dual Backplate MEMS Technology

IM69D130V01 Digital MEMS Microphone Sensor IC with 69 dBA SNR and 130dBSPL High Output Linearity Using Dual Backplate MEMS Technology
IM69D130V01 Digital MEMS Microphone Sensor IC with 69 dBA SNR and 130dBSPL High Output Linearity Using Dual Backplate MEMS Technology IM69D130V01 Digital MEMS Microphone Sensor IC with 69 dBA SNR and 130dBSPL High Output Linearity Using Dual Backplate MEMS Technology

Large Image :  IM69D130V01 Digital MEMS Microphone Sensor IC with 69 dBA SNR and 130dBSPL High Output Linearity Using Dual Backplate MEMS Technology

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IM69D130V01
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-LLGA-5
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IM69D130V01 Digital MEMS Microphone Sensor IC with 69 dBA SNR and 130dBSPL High Output Linearity Using Dual Backplate MEMS Technology

Description
Part Number: IM69D130V01 Sensitivity: - 36 DB
Tolerance: 1 DB SNR - Signal To Noise Ratio: 69 DBA
Operating Supply Current: 980 UA Frequency Range: 2.9 MHz To 3.3 MHz
Highlight:

69 dBA SNR Digital MEMS Microphone

,

130dBSPL High Output Linearity Sensor IC

,

Dual Backplate MEMS Technology XENSIV Microphone

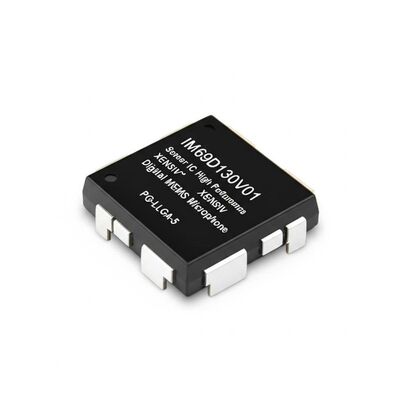

IM69D130V01 Sensor IC High Performance XENSIV™ Digital MEMS Microphone PG-LLGA-5
The IM69D130V01 is a high-performance XENSIV™ digital MEMS microphone featuring a 105dB dynamic range and exceptional output linearity up to 130dBSPL. Utilizing advanced Dual Backplate MEMS technology, this sensor delivers crystal clear audio signals, extended pick-up distance, and sensitivity to both soft and loud signals—from whispered speech to rock concert environments.
Specifications
Type MEMS (Silicon)
Output Type Digital, PDM
Direction Omnidirectional
Frequency Range 20 Hz ~ 20 kHz
Sensitivity -36dB ±1dB @ 94dB SPL
S/N Ratio 69dB
Voltage Range 1.62 V ~ 3.6 V
Current - Supply 1.3 mA
Port Location Bottom
Termination Solder Pads
Size / Dimension 0.157" L x 0.118" W (4.00mm x 3.00mm)
Height (Max) 0.051" (1.30mm)
Shape Rectangular
Key Features
  • 69 dB(A) signal-to-noise ratio
  • Below 1% distortions at 128 dBSPL (AOP - 130 dBSPL)
  • Digital (PDM) interface with 6 μs group delay at 1 kHz
  • Tight sensitivity (-36 ±1 dB) and phase (± 2 deg) tolerances
  • 28 Hz low frequency roll-off
Applications
  • Semiconductor solutions for home entertainment applications
  • Consumer Wearables
  • Industrial automation
  • Home and building automation
Other Electronic Components In Stock
Part Number Package
NDSH20120CDN TO-247-3
NDSH30120C-F155 TO-247-2
NTMFS3D0N08XT1G 5-DFN
NC7SZU04AP5X SC-88A-5
PCGA3040G2F SIP-6
NCP51313ADR2G 8-SOIC
NVXR22S90M2SPM MODULE
NCP45496XMNWTWG 20-QFN
NVH820S75L4SPM MODULE
NCP45732IMN24TWG 10-DFN
NDSH30120CDN TO-247-3
NDSH40120C-F155 TO-247-2
NL17SZU04ADFT2G SC-88A
NL27WZU04ADBVT1G SC-74
NTMFS0D7N04XMT1G 5-DFN
NVBG1000N170M1 D2PAK-7
LX34311T-H/ST SSOP-14
PIC12LF1552T-E/MU UDFN-8
RN171-I/RM441 MODULE
ATMEGAS64M1-MA-HP 32-TQFP
ATSAMV71Q21B-CBVAO LQFP144
MLX90394RLD-AAA-000-SP 6-UTQFN
MLX90416KLD-AAA-004-RE TO-39
MLX90418KLD-AAA-004-RE TO-39
MLX92241LUA-BAA-119-CA TO-92-3
MLX90513GGO-CAA-100-SP TSSOP-16
MLX90830LXG-BAF-002-RE SOIC16
MLX91231KDC-BBA-000-RE 8-SOIC
MLX90394RLD-AAA-000-RE 6-UTQFN
MLX90394RLD-AAA-001-RE 6-UTQFN
Frequently Asked Questions
Are your products original?
Yes, all products are original. Sourcing new original imported components is our primary business focus.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample orders and small quantity purchases. Sample costs vary depending on your specific order requirements or project scope.
How to ship my order? Is it safe?
We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also accommodate your preferred shipping forwarder. All products are carefully packaged to ensure safety during transit, and we take full responsibility for any damage to your order.
What about the lead time?
We can ship stock components within 5 working days. For items not currently in stock, we will confirm the lead time based on your order quantity.
