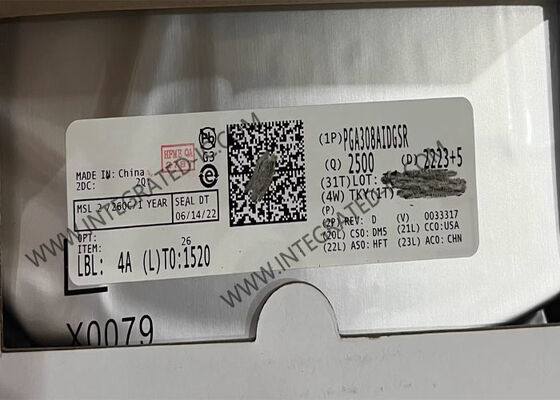

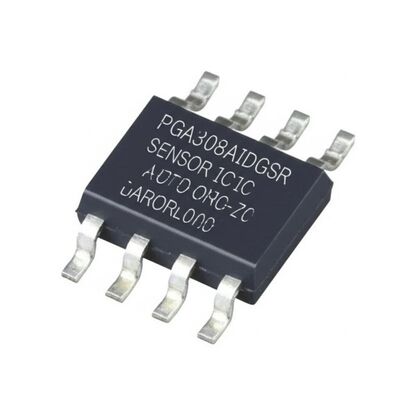

PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Programmable Gain Amplifier with Digital Calibration

PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Programmable Gain Amplifier with Digital Calibration
PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Programmable Gain Amplifier with Digital Calibration PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Programmable Gain Amplifier with Digital Calibration

Large Image :  PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Programmable Gain Amplifier with Digital Calibration

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PGA308AIDGSR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MSOP-10
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Programmable Gain Amplifier with Digital Calibration

Description
Part Number: PGA308AIDGSR Supply Voltage - Max:: 5.5 V
Supply Voltage - Min:: 2.7 V Minimum Operating Temperature:: - 40 C
Maximum Operating Temperature:: + 125 C Ib - Input Bias Current:: 100 PA
Highlight:

Single-Supply Sensor IC

,

Programmable Gain Sensor IC

,

Digital Calibration Sensor IC

PGA308AIDGSR Sensor IC Single-Supply Auto-Zero Sensor Amplifier With Programmable Gain And Offset
Product Overview

The PGA308AIDGSR is a programmable analog sensor signal conditioner that amplifies sensor signals and provides digital calibration for offset and gain. Calibration is performed via the 1W pin, a digital One-Wire, UART-compatible interface. For three-terminal sensor modules, the 1W interface can be connected to Vout, enabling programming through the Vout pin. Gain and offset calibration parameters are stored onboard in seven banks of one-time programmable (OTP) memory, with the power-on reset (POR) OTP bank programmable up to four times.

Technical Specifications
Type Signal Conditioner
Input Type Voltage
Output Type Voltage
Current - Supply 1.6 mA
Operating Temperature -40°C ~ 125°C
Key Features
  • Digital Calibration for Bridge Sensors
  • Offset Select: Coarse and Fine
  • Gain Select: Coarse and Fine
  • Bridge Fault Monitor
  • Input Mux for Lead Swap
  • Over/Under Scale Limits
  • Dour/Vour Clamp Function
  • Seven Banks OTP Memory
  • One-Wire Digital UART Interface
  • Operating Voltage: +2.7V to +5.5V
  • Temperature Range: -40°C to +125°C
  • MSOP-10 and 3mm x 4mm DFN-10 Packages
Applications
  • Bridge Sensors
  • Remote 4-20mA Transmitters
  • Strain, Load, Weigh Scales
  • Automotive Sensors
