TPS54531DDAR Integrated Circuit Chip 5A 28V Step-Down Buck Converter with Eco-mode

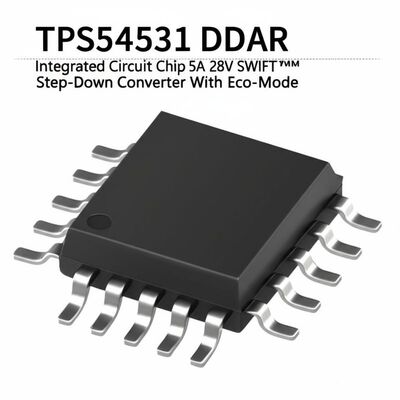

Large Image : TPS54531DDAR Integrated Circuit Chip 5A 28V Step-Down Buck Converter with Eco-mode

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS54531DDAR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SO-PowerPAD-8
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

TPS54531DDAR Integrated Circuit Chip 5A 28V Step-Down Buck Converter with Eco-mode

Description

Part Number:	TPS54531DDAR	Output Current::	5 A
Number Of Outputs::	1 Output	Input Voltage - Min::	3.5 V
Input Voltage - Max::	28 V	Quiescent Current::	110 UA
Highlight:	5A Output Current Integrated Circuit Chip , 28V Input Voltage Step-Down Converter , Eco-mode Buck Converter

TPS54531DDAR Integrated Circuit Chip 5A 28V SWIFT™ Step-Down Converter With Eco-mode

The TPS54531DDAR device is a 28-V, 5-A nonsynchronous buck converter that integrates a low RDS(on) high-side MOSFET. To increase efficiency at light loads, a pulse skipping Eco-mode feature is automatically activated.

Technical Specifications

Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	28V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	26.04V
Current - Output	5A
Frequency - Switching	570kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

3.5 to 28-V input voltage range
Adjustable output voltage down to 0.8 V
Integrated 80-mΩ high-side MOSFET supports up to 5-A continuous output current
High efficiency at light loads with a pulse skipping Eco-mode
Fixed 570-kHz switching frequency
Typical 1-μA shutdown quiescent current
Adjustable slow start limits inrush currents
Programmable UVLO threshold
Overvoltage transient protection
Cycle-by-cycle current-limit, frequency fold back, and thermal shutdown protection
Available in easy-to-use thermally enhanced 8-pin SO PowerPAD™ integrated circuit package
Use TPS56637 for higher efficiency in a smaller package
Create a custom design using the TPS54531 with the WEBENCH® Power Designer

Applications

Consumer applications such as set-top boxes, CPE equipment, LCD displays, peripherals, and battery chargers
Industrial and car audio power supplies
5-V, 12-V and 24-V distributed power systems
