BSC097N06NS 60V N-Channel Power MOSFET Transistor with 46A Drain Current Integrated Circuit Chip

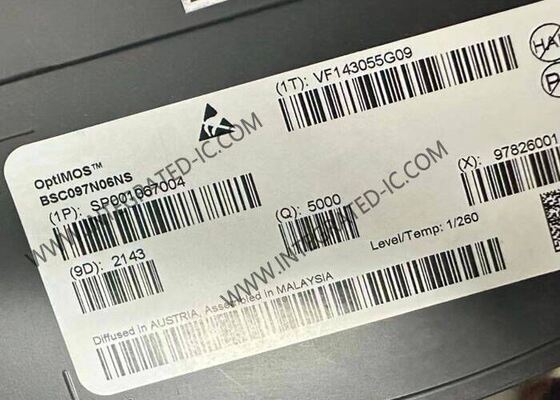

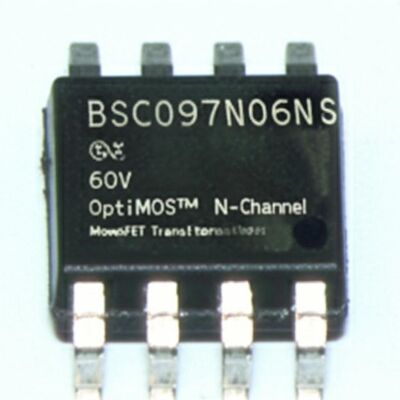

Large Image : BSC097N06NS 60V N-Channel Power MOSFET Transistor with 46A Drain Current Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BSC097N06NS

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TDSON-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

BSC097N06NS 60V N-Channel Power MOSFET Transistor with 46A Drain Current Integrated Circuit Chip

Description

Part Number:	BSC097N06NS	Transistor Polarity:	N-Channel
Vds - Drain-Source Breakdown Voltage:	60 V	Id - Continuous Drain Current:	46 A
Rds On - Drain-Source Resistance:	8 MOhms	Qg - Gate Charge:	15 NC
Highlight:	60V Power MOSFET , N-Channel Transistor , 46A Integrated Circuit Chip

BSC097N06NS Integrated Circuit Chip 60V OptiMOS™ N-Channel Power MOSFET Transistors

BSC097N06NS is a 60V OptiMOS™ N-channel power MOSFET transistor optimized for synchronous rectification in switched mode power supplies (SMPS) found in servers, desktops, and tablet chargers. This component is also ideal for various industrial applications including motor control, solar micro inverters, and fast switching DC-DC converters.

Specifications

Parameter	Value
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	9.7mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	3.3V @ 14µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1075 pF @ 30 V
Power Dissipation (Max)	2.5W (Ta), 36W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-6
Package / Case	8-PowerTDFN

Key Features

N-Channel MOSFETs optimized for high performance SMPS
175°C temperature rating
100% avalanche tested
Superior thermal resistance
40% lower RDSon vs alternative devices
40% better FOM over similar devices
Pb-free lead plating; RoHS compliant
Halogen-free according to IEC61249-2-21

Applications

Automotive battery management system (BMS) - 48 V
Automotive USB power delivery - Head unit
Cordless power tools and outdoor power equipment
DIN rail power supply solutions
Industrial robots system solutions for Industry 4.0
