SDKZ1G0200 16 Position Rotary Switch with Encoder DPST Contact 30.2×32.1×29.6mm Dimensions SDKZ Series

Large Image : SDKZ1G0200 16 Position Rotary Switch with Encoder DPST Contact 30.2×32.1×29.6mm Dimensions SDKZ Series

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SDKZ1G0200

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	16POS
Payment Terms:	T/T,L/C,Western Union

Contact Now

SDKZ1G0200 16 Position Rotary Switch with Encoder DPST Contact 30.2×32.1×29.6mm Dimensions SDKZ Series

Description

Part Number:	SDKZ1G0200	Number Of Positions:	16 Position
Current Rating:	16 A	Voltage Rating DC:	12 VDC
Voltage Rating AC:	250 VAC	Contact Form:	DPST
Highlight:	16 Position Rotary Switch , DPST Contact Encoder Switch , 30.2×32.1×29.6mm Dimensions Integrated Circuit Chip

SDKZ1G0200 Integrated Circuit Chip 16 Position Rotary Switches With Encoder SDKZ Series

SDKZ1G0200 is a Rotary Switch with Encoder from the SDKZ Series, featuring non-illuminated design and compact dimensions of 30.2×32.1×29.6mm.

Product Specifications

Type	Rotary Switches
Circuit arrangement	DPST
Mounting method	PC board
Terminal type	Straight
Dimensions (W×D×H)	30.2×32.1×29.6mm
Operating temperature range	-10℃ to +70℃
Rating	PS:16(6)A 250V AC, 14(6)A 250V AC
Durability Operating life	10,000 cycles (Power) 30,000 cycles (Encoder)

Electrical Performance

Contact resistance	100mΩ max. (Power) 1mΩ max. (Encoder)
Insulation resistance	500MΩ min.500V DC (Power) 100MΩ min.100V DC (Encoder)
Voltage proof	2000V AC for 1 minute (Power) 100V AC for 1 minute (Encoder)

Mechanical Performance

Terminal strength	20N (Power) 5N (Encoder)
Actuator strength	Perpendicular direction 30N

Environmental Performance

Cold	-40℃ 240h
Dry heat	85℃ 240h
Damp heat	40℃, 90 to 95%RH 240h

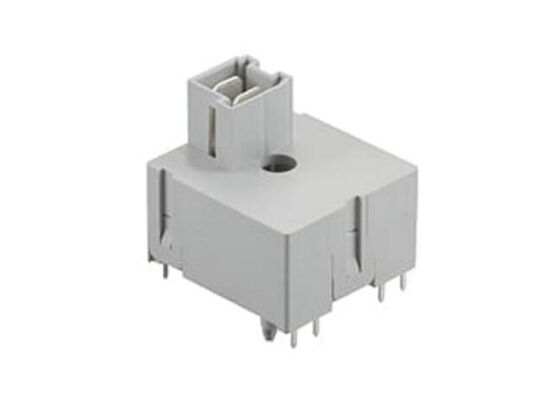

Product Image
