LM5008MM Integrated Circuit Chip DC/DC Buck Switching Regulator with 95V Input Voltage 350mA Output Current and Constant On-Time

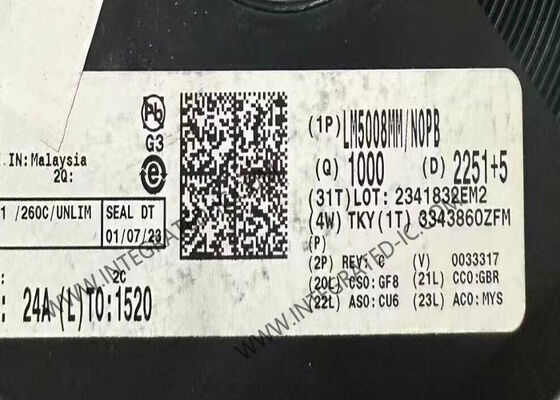

Large Image : LM5008MM Integrated Circuit Chip DC/DC Buck Switching Regulator with 95V Input Voltage 350mA Output Current and Constant On-Time

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LM5008MM

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VSSOP-8
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

LM5008MM Integrated Circuit Chip DC/DC Buck Switching Regulator with 95V Input Voltage 350mA Output Current and Constant On-Time

Description

Part Number:	LM5008MM	Output Voltage::	2.5 V To 75 V
Output Current::	350 MA	Number Of Outputs::	1 Output
Input Voltage - Min::	9.5 V	Input Voltage - Max::	95 V
Highlight:	95V Input Voltage Integrated Circuit Chip , 350mA Output Current DC/DC Buck Switching Regulator , Constant On-Time LM5008MM

LM5008MM Integrated Circuit Chip 95V 350mA Constant On-Time DC/DC Buck Switching Regulator

The LM5008MM is a 350-mA step-down switching converter that provides all necessary functions for implementing a cost-effective and efficient buck regulator. This high-voltage converter features an integrated 100-V N-channel buck switch and operates across an input voltage range of 9V to 95V. Available in 8-pin VSSOP and thermally enhanced 8-pin WSON packages, the device is straightforward to implement. The converter utilizes a hysteretic control scheme with PWM on-time inversely proportional to VIN, maintaining relatively constant operating frequency without requiring loop compensation. Intelligent current limit protection with forced off-time inversely proportional to VOUT ensures short-circuit protection with minimal foldback. Additional protection features include thermal shutdown, VCC undervoltage lockout, gate drive undervoltage lockout, and maximum duty cycle limiter.

Specifications

Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	9.5V
Voltage - Input (Max)	95V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	75V
Current - Output	350mA
Frequency - Switching	50kHz ~ 600kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)

Key Features

Operating Input Voltage Range: 6V to 95V
Integrated 100-V, N-Channel Buck Switch
Internal VCC Regulator
No Loop Compensation Required
Ultra-Fast Transient Response
On-Time Varies Inversely With Line Voltage
Operating Frequency Remains Constant With Varying Line Voltage and Load Current
Adjustable Output Voltage
Highly Efficient Operation
Precision Internal Reference
Low Bias Current
Intelligent Current Limit Protection
Thermal Shutdown
8-Pin VSSOP and WSON Packages
Create a Custom Design Using the LM5008 With the WEBENCH® Power Designer

Applications

Non-Isolated Telecommunication Buck Regulators
Secondary High-Voltage Post Regulators
48-V Automotive Systems
