LEO1N5811AF Integrated Circuit Chip Rad-Hard 150V 6A Ultrafast Rectifier In SOD128Flat Package

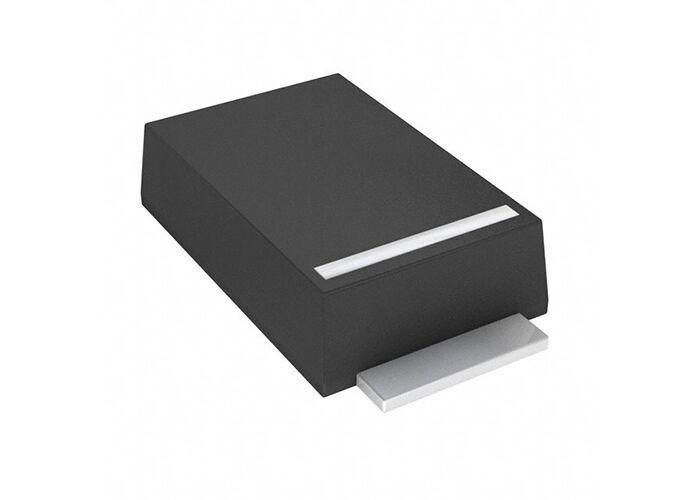

Large Image : LEO1N5811AF Integrated Circuit Chip Rad-Hard 150V 6A Ultrafast Rectifier In SOD128Flat Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LEO1N5811AF

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOD128Flat
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LEO1N5811AF Integrated Circuit Chip Rad-Hard 150V 6A Ultrafast Rectifier In SOD128Flat Package

Description

Part Number:	LEO1N5811AF	Vr - Reverse Voltage::	150 V
If - Forward Current::	6 A	Vf - Forward Voltage::	955 MV
Max Surge Current::	116 A	Ir - Reverse Current::	2 UA
Highlight:	Rad-Hard 150V ultrafast rectifier IC , 6A ultrafast rectifier SOD128Flat package , Ultrafast rectifier integrated circuit chip

LEO1N5811AF Integrated Circuit Chip Rad-Hard 150V 6A Ultrafast Rectifier

The LEO1N5811AF is a radiation-hardened 6A, 150V ultrafast rectifier housed in the compact SOD128Flat surface-mount package, operating within a junction temperature range of -40°C to +175°C. This device meets the demanding requirements of Low Earth Orbit (LEO) satellites, offering optimal performance and reliability while maintaining cost efficiency through STMicroelectronics' LEO generic specification for space-ready radiation-hardened plastic power discretes.

Product Specifications

Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io)	6A
Voltage - Forward (Vf) (Max) @ If	955 mV @ 6 A
Speed	Fast Recovery ≤ 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	35 ns
Current - Reverse Leakage @ Vr	2 µA @ 150 V
Capacitance @ Vr, F	60pF @ 10V, 1MHz
Grade	Automotive
Operating Temperature - Junction	-40°C ~ 175°C

Key Features

Maximum reverse voltage: 150 V
Average on-state current: 6 A
Maximum junction temperature: 175°C
DC thermal resistance RTH(JL): 10°C/W
ESCC qualified diode die
SOD128Flat surface mount package
Reliability qualification based on AEC-Q101
Compact package size: 2.5 x 4.8 = 12 mm²
Low leakage current: 2 µA at VRWM at 25°C
Fast switching with low on-state voltage
Radiation tested performance:
- TID 300 krad(Si) at high dose rate
- TNID 3.10¹¹ particles/cm²
- SEB free at full VRWM up to 60 MeV·cm²/mg

Applications

Low Earth Orbit (LEO) satellite constellations
Internet access systems
In-flight internet services
Earth observation missions
Automotive electronics
Switching mode power supplies
High frequency DC-to-DC converters
Low voltage high frequency inverters
OR-ring, free-wheeling, and blocking diodes
Reverse polarity protection circuits
Critical mission equipment for avionics and high-reliability industrial applications
