LEO1N5819AF Integrated Circuit Chip Rad-hard 45V 1A Schottky Rectifier In SOD128Flat Package

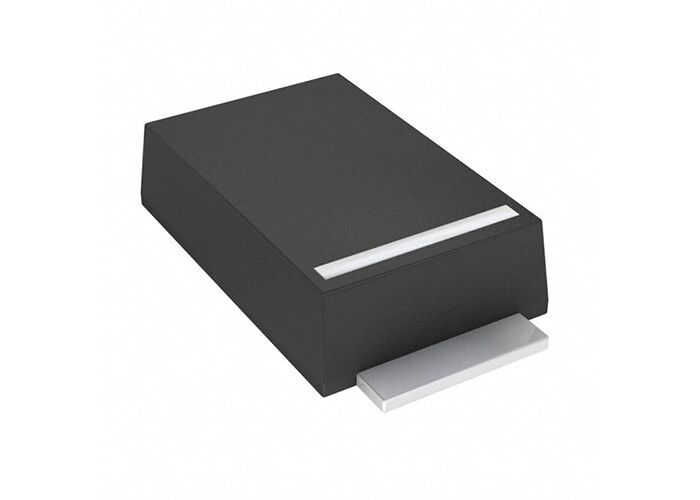

Large Image : LEO1N5819AF Integrated Circuit Chip Rad-hard 45V 1A Schottky Rectifier In SOD128Flat Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LEO1N5819AF

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOD128Flat
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LEO1N5819AF Integrated Circuit Chip Rad-hard 45V 1A Schottky Rectifier In SOD128Flat Package

Description

Part Number:	LEO1N5819AF	If - Forward Current::	1 A
Vrrm - Repetitive Reverse Voltage::	45 V	Vf - Forward Voltage::	490 MV
Ifsm - Forward Surge Current::	47.5 A	Ir - Reverse Current::	30 UA
Operating Temperature Range::	- 40 C To + 150 C
Highlight:	Rad-hard Schottky rectifier IC , 45V 1A integrated circuit chip , SOD128Flat package IC chip

LEO1N5819AF Integrated Circuit Chip Rad-hard 45V 1A Schottky Rectifier

The LEO1N5819AF is a 1A, 45V radiation-hardened Schottky diode rectifier housed in the compact SOD128Flat surface-mount package. Operating within a junction temperature range of -40°C to +150°C, this component is specifically engineered for Low Earth Orbit (LEO) satellite applications where performance, reliability, and cost-effectiveness are critical.

Product Overview

Designed to meet STMicroelectronics' LEO generic specification for space-ready radiation-hardened plastic power discretes, this AEC-Q101-based solution offers an optimal balance between footprint size reduction, cost efficiency, radiation hardness, and manufacturing scalability. The LEO1N5819AF is ideal for switching mode power supplies, high-frequency DC-to-DC converters, low-voltage high-frequency inverters, OR-ring applications, free-wheeling circuits, blocking diodes, and reverse polarity protection in critical mission equipment including avionics and high-reliability industrial systems.

Technical Specifications

Parameter	Value
Voltage - DC Reverse (Max)	150 V
Current - Average Rectified	6A
Voltage - Forward (Max) @ If	955 mV @ 6 A
Speed	Fast Recovery ≤ 500ns, > 200mA (Io)
Reverse Recovery Time	35 ns
Current - Reverse Leakage @ Vr	2 µA @ 150 V
Capacitance @ Vr, F	60pF @ 10V, 1MHz
Grade	Automotive
Operating Temperature - Junction	-40°C ~ 175°C

Key Features

Maximum reverse voltage: 45 V
Average on-state current: 1 A
Maximum junction temperature: 150 °C
DC thermal resistance RTH(JL): 13 °C/W
ESCC qualified diode die
SOD128Flat surface mount package
Reliability qualification based on AEC-Q101
Compact footprint: 2.5 x 4.8 = 12 mm²
Fast switching with low on-state voltage
Radiation tested performance:
- TID 300 krad(Si) at high dose rate
- TNID 3.10¹¹ particles/cm²
- SEB free at full VRWM up to 60 MeV.cm²/mg

Applications

Low Earth Orbit (LEO) satellite constellations
Internet access systems
In-flight internet services
Earth observation missions
Automotive electronics
