LEO1N5822AF Integrated Circuit Chip Rad-Hard 40V 3A Automotive Schottky Rectifier

Description

Part Number:	LEO1N5822AF	If - Forward Current::	3 A
Vrrm - Repetitive Reverse Voltage::	40 V	Vf - Forward Voltage::	485 MV
Ifsm - Forward Surge Current::	137 A	Ir - Reverse Current::	80 UA
Highlight:	Rad-Hard 40V Schottky Rectifier , Automotive Schottky Rectifier IC , 3A Integrated Circuit Chip

LEO1N5822AF Integrated Circuit Chip Rad-Hard 40V 3A Automotive Schottky Rectifier

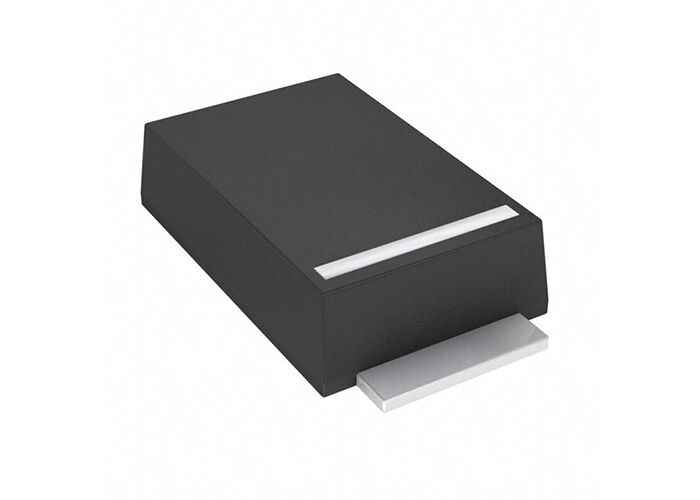

The LEO1N5822AF is a radiation-hardened 3A, 40V Schottky diode housed in a compact SOD128Flat surface-mount package. Designed to operate within a junction temperature range of -40°C to +150°C, this rectifier meets the demanding performance and reliability requirements of Low Earth Orbit (LEO) satellite applications while maintaining cost-effectiveness.

Product Overview

This automotive-grade Schottky rectifier addresses the challenges of LEO satellites through STMicroelectronics' specialized LEO generic specification for space-ready radiation-hardened plastic power discretes. Based on AEC-Q101 standards, this specification provides an optimal balance between footprint size reduction, cost efficiency, radiation hardness, and large-scale production capacity.

Technical Specifications

Parameter	Value
Voltage - DC Reverse (Max)	40 V
Current - Average Rectified	3A
Voltage - Forward (Max) @ If	485 mV @ 3 A
Speed	Fast Recovery ≤ 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	80 µA @ 40 V
Capacitance @ Vr, F	240pF @ 5V, 1MHz
Grade	Automotive

Key Features

Maximum reverse voltage: 40 V
Average on-state current: 3 A
Maximum junction temperature: 150°C
DC thermal resistance RTH(JL): 10°C/W
ESCC qualified diode die
SOD128Flat surface mount package (2.5 x 4.8 = 12 mm²)
Reliability qualification based on AEC-Q101
Fast switching with low on-state voltage
Radiation tested: TID 300 krad(Si) at high dose rate
TNID 3.10¹¹ particles/cm²
SEB free at full VRWM up to 60 MeV.cm²/mg

Applications

Switching mode power supplies
High frequency DC-to-DC converters
Low voltage high frequency inverters
OR-ring, free-wheeling, and blocking diodes
Reverse polarity protection
Low Earth Orbit (LEO) satellite constellations
Internet access and in-flight internet services
Earth observation missions
Automotive systems
Critical mission equipment (avionics and Hi-Rel industrial)
