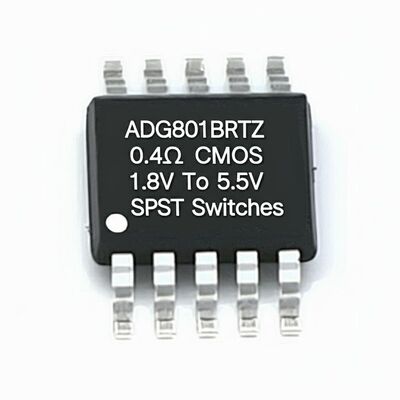

ADG801BRTZ Integrated Circuit Chip CMOS SPST Switch with 0.4Ω On Resistance 1.8V to 5.5V Supply and Automotive Temperature Range

Description
Part Number: ADG801BRTZ Switch Circuit: SPST - NO
Multiplexer/Demultiplexer Circuit: 1:1 Number Of Circuits: 1
On-State Resistance (Max): 300mOhm Voltage - Supply, Single (V+): 1.8V ~ 5.5V
Highlight:

0.4Ω On Resistance Integrated Circuit Chip

,

1.8V to 5.5V Supply Voltage CMOS Switch

,

Automotive Temperature Range SPST Switch

ADG801BRTZ Integrated Circuit Chip
Monolithic CMOS single-pole, single throw (SPST) switches with on resistance of less than 0.4 Ω, designed using an advanced submicron process for extremely low on resistance, high switching speed, and low leakage currents.
Technical Specifications
Parameter Value
Switch Circuit SPST - NO
Multiplexer/Demultiplexer Circuit 1:1
Number of Circuits 1
On-State Resistance (Max) 300mOhm
Voltage Supply Range 1.8V ~ 5.5V
Switch Time (Max) 45ns, 15ns
-3db Bandwidth 12MHz
Charge Injection 50pC
Channel Capacitance 180pF, 180pF
Leakage Current (Max) 250pA
Operating Temperature -40°C ~ 125°C
Key Features
  • 0.4 Ω maximum on resistance at 125°C
  • 0.08 Ω maximum on resistance flatness at 125°C
  • 1.8 V to 5.5 V single supply operation
  • Automotive temperature range (-40°C to +125°C)
  • 400 mA current-carrying capability
  • Tiny 6-lead SOT-23 and 8-lead MSOP packages
  • 35 ns switching times
  • Low power consumption
  • TTL-/CMOS-compatible inputs
  • Pin compatible with ADG701/ADG702
Product Highlights
Low on resistance (0.25 Ω typical)
1.8 V to 5.5 V single-supply operation
Tiny 6-lead SOT-23 and 8-lead MSOP packages
400 mA current-carrying capability
Automotive temperature range (-40°C to +125°C)
Pin compatible with ADG701 (ADG801) and ADG702 (ADG802)
Applications
  • Power routing
  • Cellular phones
  • Modems
  • PCMCIA cards
  • Hard drives
  • Data acquisition systems
  • Communications systems
  • Relay replacement
  • Battery-powered systems
Related Products
