LT3015IQ-5 Integrated Circuit Chip 1.5A Low Noise Negative Linear Regulator with Precision Current Limit

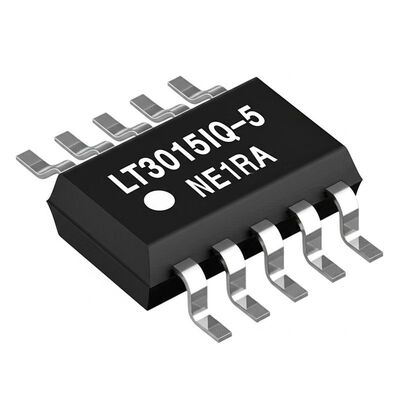

Large Image : LT3015IQ-5 Integrated Circuit Chip 1.5A Low Noise Negative Linear Regulator with Precision Current Limit

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LT3015IQ-5

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	DDPAK-5
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

LT3015IQ-5 Integrated Circuit Chip 1.5A Low Noise Negative Linear Regulator with Precision Current Limit

Description

Part Number:	LT3015IQ-5	Output Voltage::	- 5 V
Output Current::	1.5 A	Number Of Outputs::	1 Output
Polarity::	Negative	Quiescent Current::	1.1 MA
Highlight:	1.5A Output Current Integrated Circuit Chip , Low Noise Linear Regulator , Precision Current Limit Negative Voltage Regulator

LT3015IQ-5 Integrated Circuit Chip

1.5A Low Noise Negative Linear Regulator with Precision Current Limit

Product Overview

The LT3015IQ-5 is a low noise, low dropout, negative linear regulator with fast transient response. This device supplies up to 1.5A of output current at a typical dropout voltage of 310mV. Operating quiescent current is typically 1.1mA and drops to <1μA in shutdown. Quiescent current is well controlled in dropout, making it ideal for noise-sensitive applications.

Key Specifications

Parameter	Value
Output Configuration	Negative
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	-30V
Voltage - Output (Min/Fixed)	-5V
Voltage Dropout (Max)	0.68V @ 1.5A
Current - Output	1.5A
Current - Quiescent (Iq)	2.4 mA
Current - Supply (Max)	70 mA
PSRR	58dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C

Key Features

Output Current: 1.5A
Dropout Voltage: 310mV
Precision Current Limit with Foldback
Low Output Noise: 60μVRMS (10Hz to 100kHz)
Low Quiescent Current: 1.1mA
Precision Positive or Negative Shutdown Logic
Fast Transient Response
Wide Input Voltage Range: -1.8V to -30V
Adjustable Output Voltage Range: -1.22V to -29.3V
Fixed Output Voltages: -2.5V, -3V, -3.3V, -5V, -12V, -15V
Controlled Quiescent Current in Dropout
<1μA Quiescent Current in Shutdown
Stable with 10μF Output Capacitor
Stable with Ceramic, Tantalum or Aluminum Capacitors
Thermal Limit with Hysteresis
Reverse Output Protection
Available in 5-Lead TO-220 and DD-Pak, Thermally Enhanced 12-Lead MSOP and 8-Lead 3mm * 3mm * 0.75mm DFN Packages

Applications

Post-Regulator for Switching Supplies
Negative Logic Supplies
Low Noise Instrumentation
Industrial Supplies
Negative Complement to the LT1963A
