LM1085ISX-ADJ Integrated Circuit Chip Voltage Regulator with 3A Output Current 1.5V Low Dropout and Adjustable Output Voltage

LM1085ISX-ADJ Integrated Circuit Chip Voltage Regulator with 3A Output Current 1.5V Low Dropout and Adjustable Output Voltage

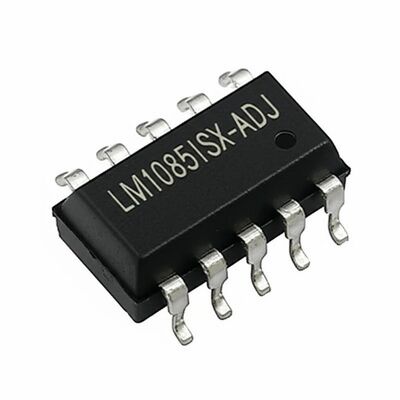

LM1085ISX-ADJ Integrated Circuit Chip Voltage Regulator with 3A Output Current 1.5V Low Dropout and Adjustable Output Voltage LM1085ISX-ADJ Integrated Circuit Chip Voltage Regulator with 3A Output Current 1.5V Low Dropout and Adjustable Output Voltage

Large Image :  LM1085ISX-ADJ Integrated Circuit Chip Voltage Regulator with 3A Output Current 1.5V Low Dropout and Adjustable Output Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LM1085ISX-ADJ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-263-3
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LM1085ISX-ADJ Integrated Circuit Chip Voltage Regulator with 3A Output Current 1.5V Low Dropout and Adjustable Output Voltage

Description
Part Number: LM1085ISX-ADJ Output Voltage:: 1.2 V To 15 V
Output Current:: 3 A Number Of Outputs:: 1 Output
Quiescent Current:: 10 MA PSRR / Ripple Rejection - Typ:: 75 DB
Highlight:

3A Output Current Voltage Regulator

,

1.5V Low Dropout Integrated Circuit Chip

,

Adjustable Output Voltage LM1085ISX-ADJ

LM1085ISX-ADJ Integrated Circuit Chip 1.5V 3A Low Dropout Positive Regulators
The LM1085ISX-ADJ is a high-performance positive voltage regulator featuring a maximum dropout of 1.5V at 3A load current. This device maintains the same pin-out configuration as TI's industry-standard LM317, ensuring compatibility with existing designs.
Product Overview
The adjustable output voltage version requires two external resistors to set the output voltage, while fixed output voltage versions integrate these resistors internally. The integrated circuit incorporates a zener-trimmed bandgap reference, current limiting, and thermal shutdown protection.
Technical Specifications
Parameter Specification
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 29V
Voltage - Output (Min/Fixed) 1.25V
Voltage - Output (Max) 15V
Voltage Dropout (Max) 1.5V @ 3A
Current - Output 3A
Current - Quiescent (Iq) 10 mA
PSRR 75dB (120Hz)
Protection Features Over Current, Over Temperature
Operating Temperature -40°C ~ 125°C (TJ)
Key Features
  • Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
  • Current Limiting and Thermal Protection
  • Output Current 3 A
  • Line Regulation 0.015% (typical)
  • Load Regulation 0.1% (typical)
Applications
  • High Efficiency Linear Regulators
  • Battery Charger Systems
  • Post Regulation for Switching Supplies
  • Constant Current Regulator
  • Microprocessor Power Supply
