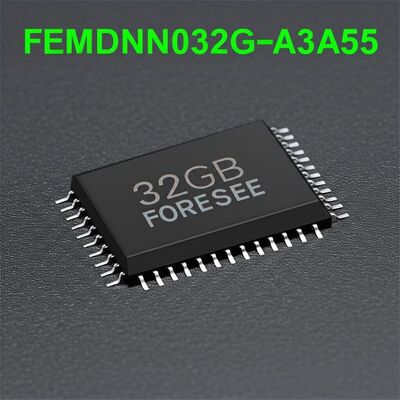

32GB FORESEE eMMC Memory IC Chip in 153-FBGA Package with 400MB/s Data Transfer Rate

FEMDNN032G-A3A55 FORESEE eMMC is an embedded storage solution designed in the BGA package. This integrated solution combines NAND flash memory with an eMMC controller that manages interface protocols, wear-leveling, bad block management, and error correction.

The FEMDNN032G-A3A55 offers high performance at a competitive cost, delivering exceptional quality with low power consumption. This eMMC solution is fully compatible with JEDEC standard eMMC 5.1 specifications.

• eMMC 5.1 specification compatibility (Backward compatible to eMMC 4.41/4.5/5.0)
• Bus mode support with data bus width: 1 bit (default), 4 bits, 8 bits
• High-speed data transfer rate: up to 400MB/s (HS400)
• MMC I/F Clock frequency: 0~200MHz
• Operating voltage range: Vcc(NAND): 2.7-3.6V, Vccq(Controller): 1.7-1.95V/2.7-3.6V
• Operating temperature: -25°C to +85°C
• Storage temperature without operation: -40°C to +85°C
• Sudden-Power-Loss safeguard protection
• Hardware ECC engine for data integrity
• Unique firmware backup mechanism
• Global-wear-leveling for extended lifespan
• Advanced features including HS400, HS200, Partitioning, RPMB, Boot features, HW/SW Reset, Discard, Trim, Erase, Sanitize, Background operations, HPI, Enhanced reliable write, S.M.A.R.T. Health Report, FFU, and Sleep/awake modes
